Neutrik opticalCON® LITE Tactical Patch Cable
Neutrik’s opticalCON® LITE is a semi-rugged fibre optical connection suitable for a wide range of applications. Its connectors offer a cost effective and lightweight solution in a robust housing. The unique, compact design of the tactical patch cable allows extreme bending without fibre breakage and absorbs high lateral forces. As a result, it is an ideal choice for both permanent and semi-permanent installations such as server rooms, patch fields, and indoor cabling.
As well as harsh environment applications, there is also a demand for quality fibre connections for semi-rugged applications, such as patching or permanent installations. These applications require a focus on costs and a sealing shutter is not required. The opticalCON LITE range couples high performance with a cost effective, compact, and light weight design. It is fully compatible with the standard opticalCON chassis connectors.
- Singlemode or multimode
- PC or APC polarity (singlemode only)
- 2-24 fibre
The Neutrik range provides a range of benefits that make this option well suited for harsh environments and industries requiring temporary data connectivity.
Suitable for installations such as server rooms, patch fields or indoor cabling.
Reliable Push-Pull locking mechanism.
Easy to clean, no special tools required.
Dirt, dust and water protection to IP65 in mated condition.

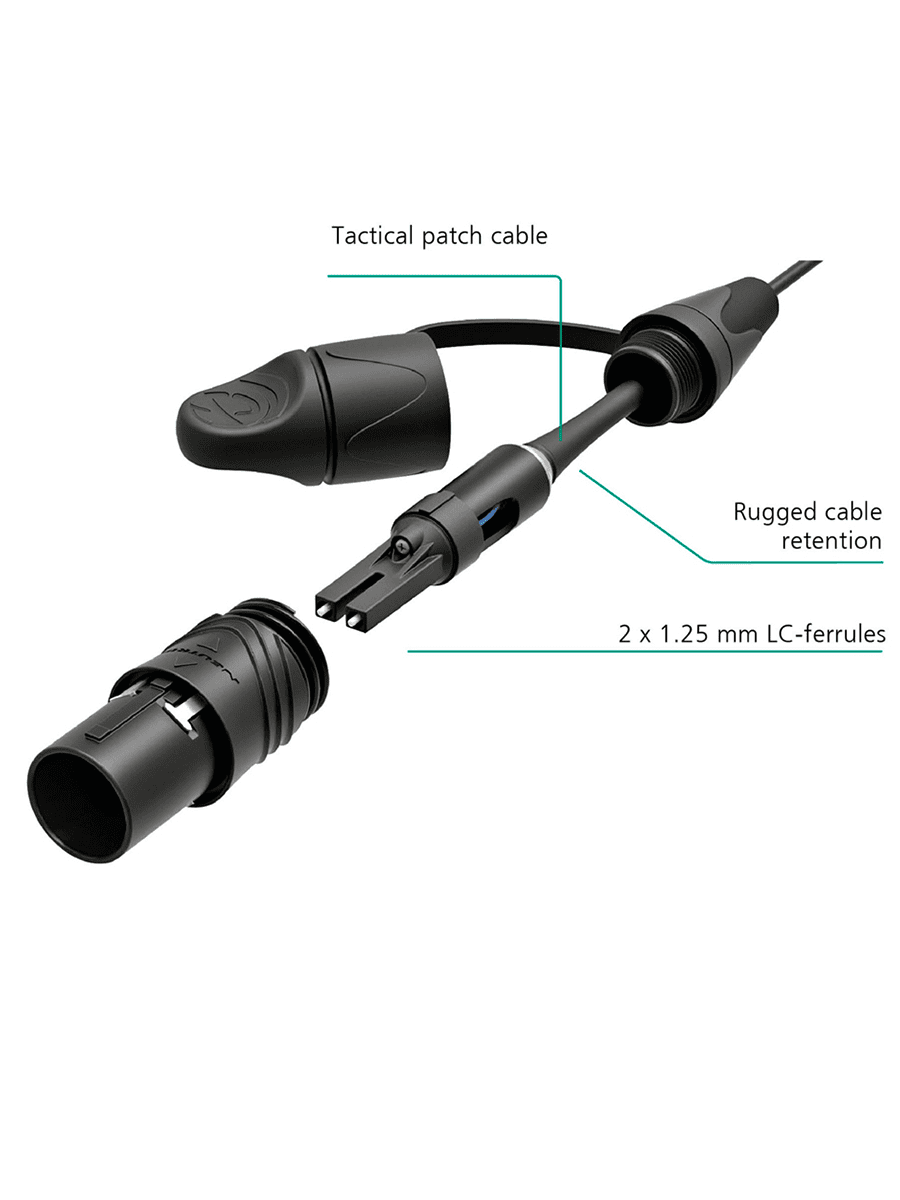

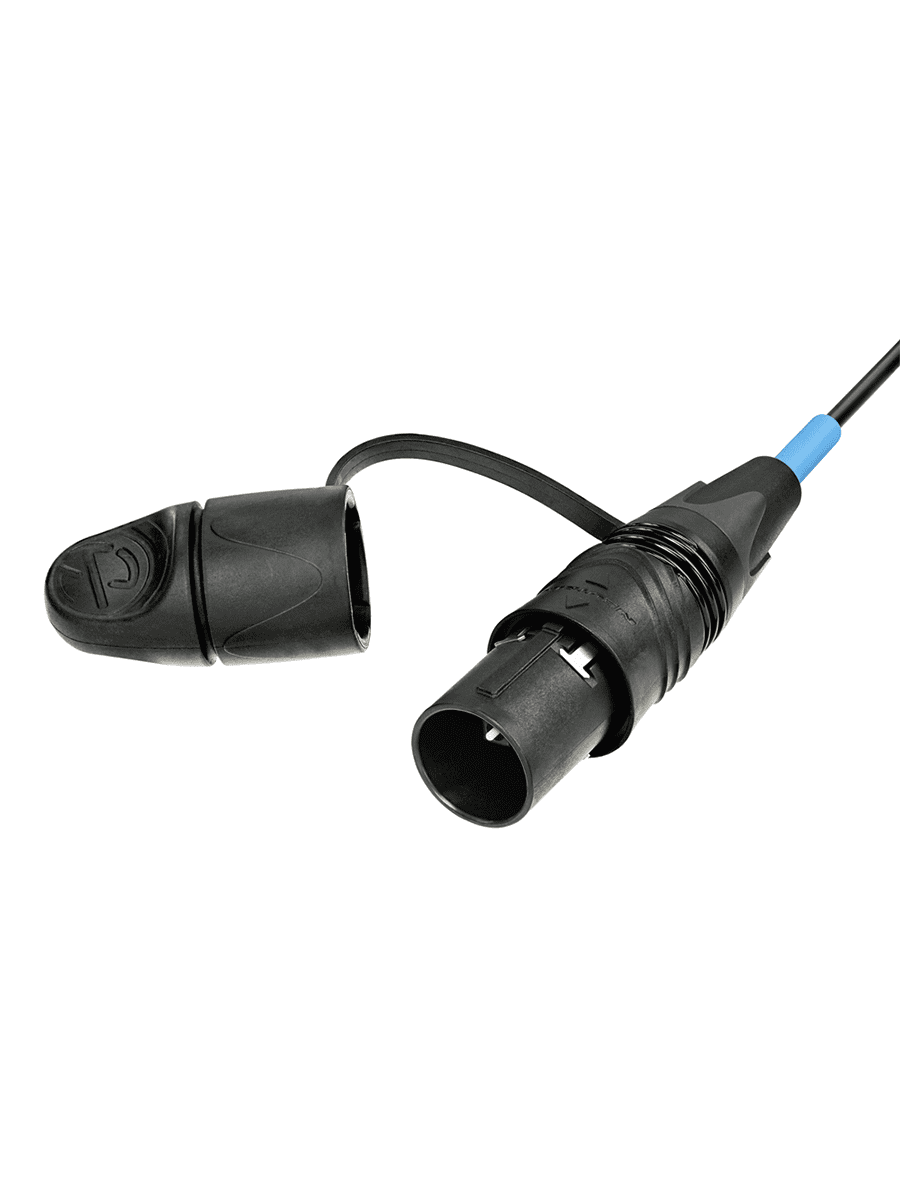

opticalCON DUO LITE
Rugged and lightweight 2-channel patch cable, excellent cable retention due to aramid yarn, black PVC outer jacket, available in multi- and singlemode (PC or APC), suitable for permanent and temporary installation.

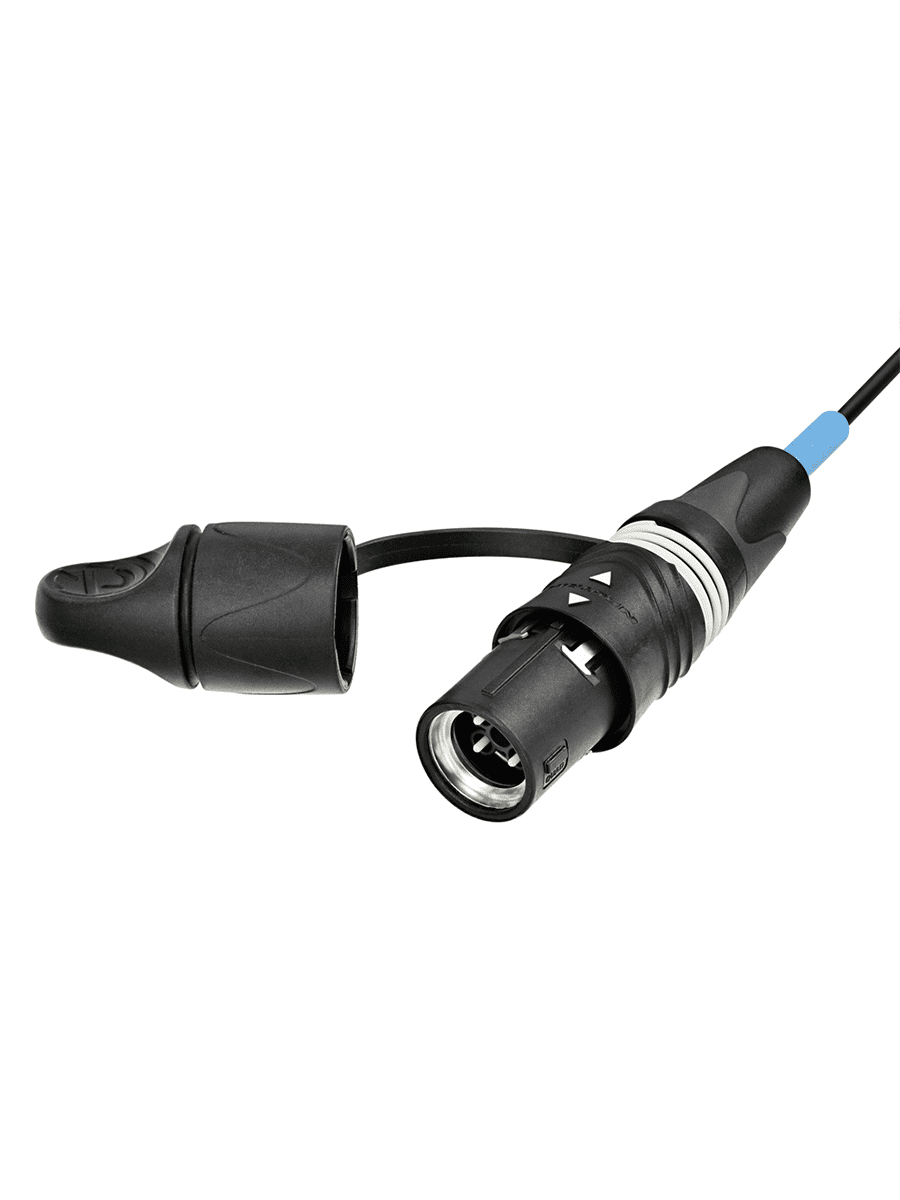

opticalCON QUAD LITE

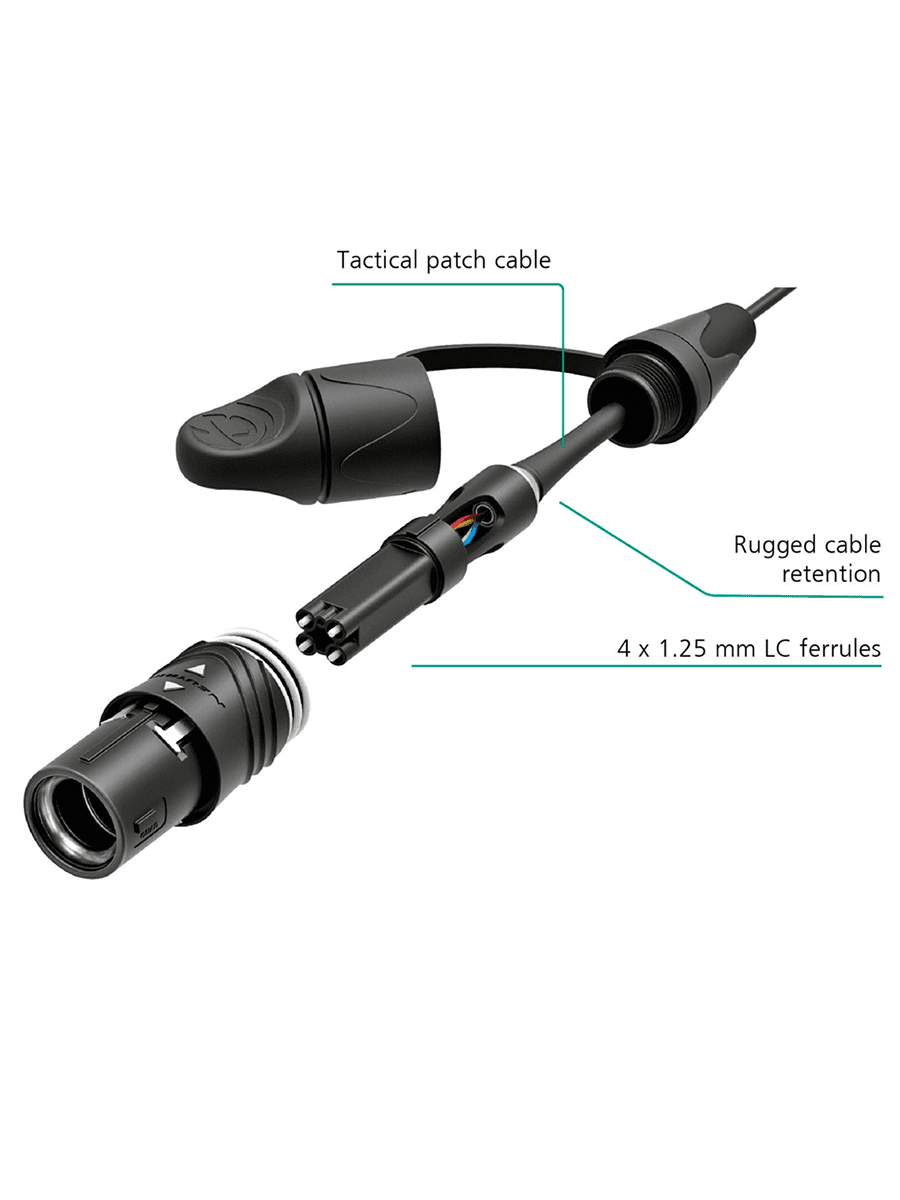

Lightweight tactical patch cable, 4×900/125 micron fibres, rugged cable retention due to aramid yarn, black PVC outer jacket, available in multi- and singlemode (PC or APC), designed for permanent or semi-permanent installations.
opticalCON MTP 12 LITE
Rugged tactical patch cable, 12×250/125 micron fibres, aramid yarn for appropriate cable retention, black PVC outer jacket, available in multimode PC or singlemode APC, suitable for permanent or semi-permanent installations.

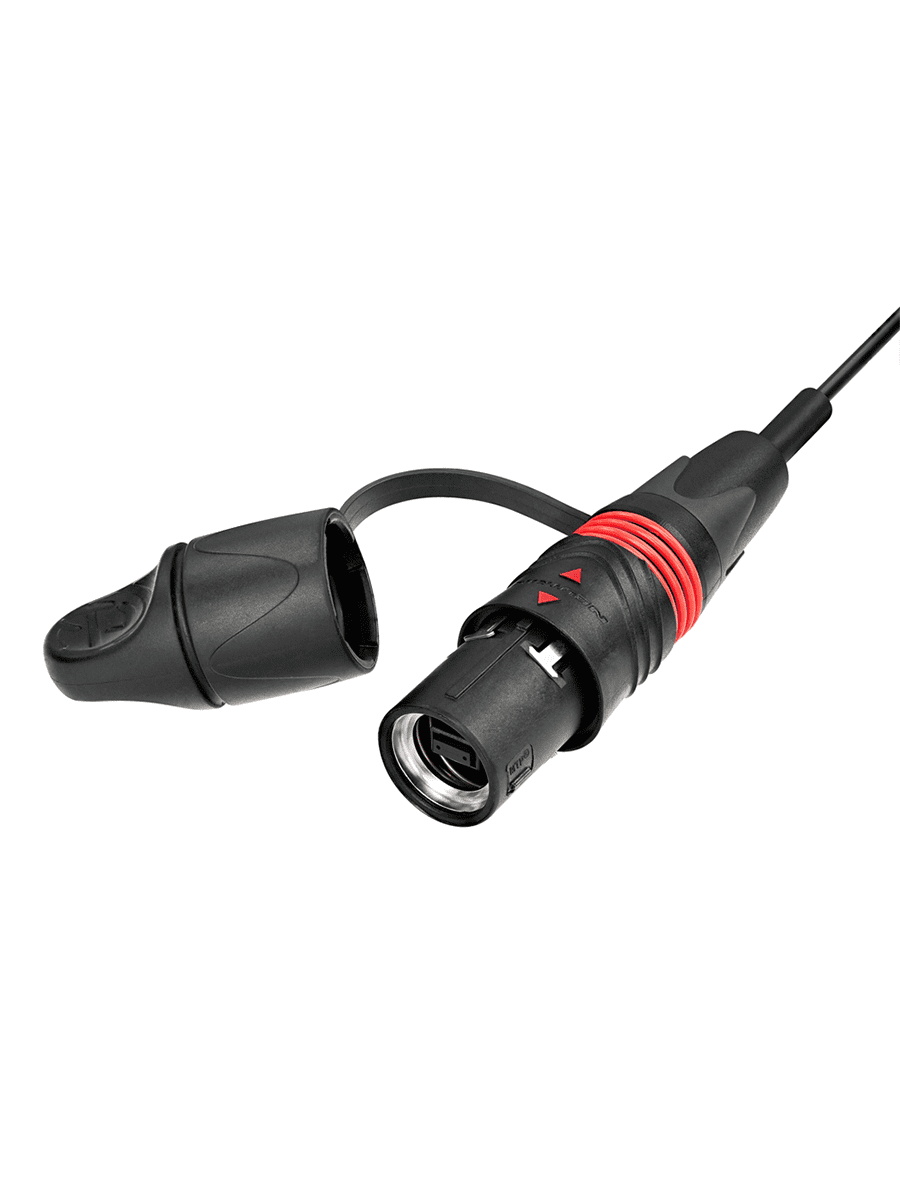

opticalCON MTP 24 LITE
Rugged tactical patch cable, 24×250/125 micron fibres, aramid yarn for appropriate cable retention, black PVC outer jacket, available in multimode PC or singlemode APC, suitable for permanent or semi-permanent installations.
Tactical Patch Cable
Conventional patch cables are sensitive in terms of undercutting the minimum bending radius and lateral pressure. Neutrik’s tactical patch cables contain a unique fibre design including a protection layer which allows bending with minimal radius and increased lateral pressure. Therefore the tactical patch cables are the right choice for permanent or semi-permanent applications.
