Neutrik Lead Time Alert

Since the end of last year, we’ve experienced supply challenges with the Neutrik range of MTP cables. These issues primarily affect both new assemblies and servicing/repairs of the opticalCON Advanced Series, but have also impacted the opticalCON LITE range.

Whilst we strive to provide accurate delivery dates, the variability in lead times we’ve received from Neutrik has been significant, ranging from 3 months to 6 months. We understand this is frustrating for our clients and makes planning for your projects and events difficult, especially those with time sensitive requirements.

To address your immediate needs and overcome these challenges, we’ve implemented an interim solution. Though not equivalent to the well-engineered Neutrik products, our solution enables swift delivery on a quick turnaround time of 1-2 weeks, whilst providing the same fibre connectivity, to facilitate the smooth running of your projects.

For further details, or assistance with any technical enquiries, please refer below or reach out to our team. Please note this solution is not available to buy online.

Contact us or call us now on 01488 685800 to request a quick quote, with accurate delivery dates, from our friendly Sales team.

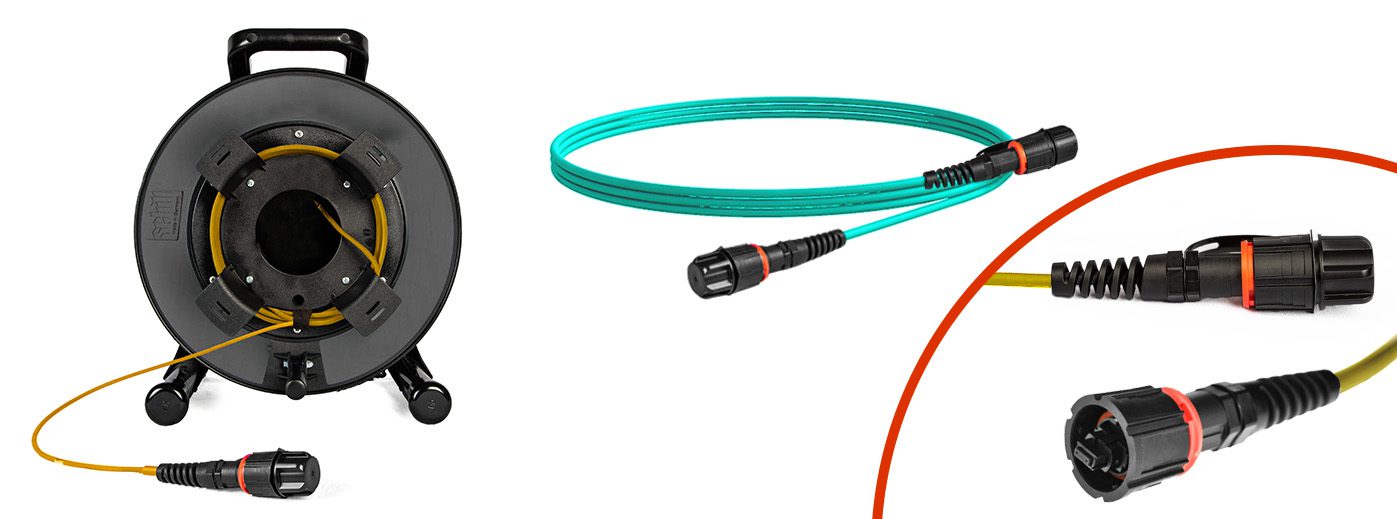

Our Interim Solution

PLUG CONNECTOR

Offering the convenience of a 12 or 24 fibre MPO housed in an IP68 rated, strong, lightweight, PBT shell.  Available in singlemode or multimode (OM3 or OM4).

Reels & Connectors

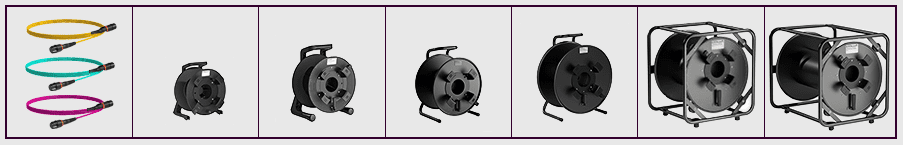

REEL OPTIONS
Reel Option Table

The cable can either be provided coiled (no reel), on disposable reels or on re-deployable reels (same range that Neutrik use).

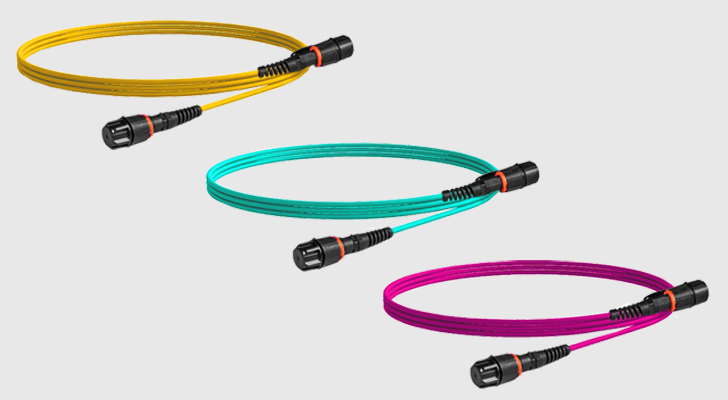

Fibre Optic Cable
FIBRE OPTIC CABLE

4.8mm double jacketed (as standard) or 3mm (similar to opticalCON Lite) supplied with a yellow (SM), aqua (OM3) or heather violet (OM4) jacket.

Note: this is not a MILTAC cable (which opticalCON uses) and although we can spool onto a re-deployable reel, the cable has not been tested for repeated coiling/deployment.

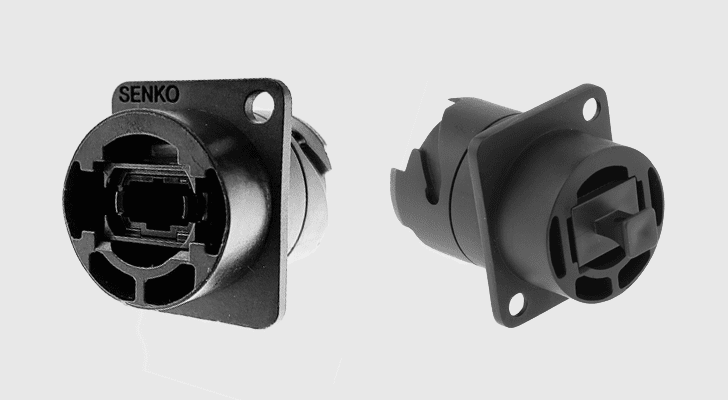

Chassis Connector
CHASSIS CONNECTOR

The XLR/D Series chassis connector/bulkhead connects to the plugs and fits in the same sized hole as the Neutrik chassis connector.

The rear socket takes a standard MPO/MTP connector.

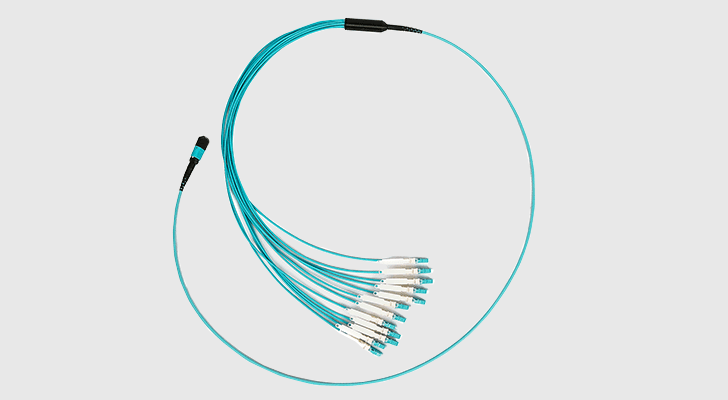

MTP Fan Out
MTP FANOUT

This plugs into the rear of the chassis connector and can be terminated on the other end with SC/ST/FC/LC.

This is uses a US Conec MTP on one end and is compatible with the Neutrik system.

Sample Costs

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Solution Sample Cost
1 100m 12f SM Plug to Plug with deployable reel £295
2 300m 12f SM Plug to Plug with deployable reel £490
3 100m 24f SM Plug to Plug with deployable reel £388
4 300m 24f SM Plug to Plug with deployable reel £686
5
6 100m 12f OM3 Plug to Plug with deployable reel £365
7 300m 12f OM3 Plug to Plug with deployable reel £778
8 100m 24f OM3 Plug to Plug with deployable reel £492
9 300m 24f OM3 Plug to Plug with deployable reel £1,065
10
11 100m 12f OM4 Plug to Plug with deployable reel £555
12 300m 12f OM4 Plug to Plug with deployable reel £1,350
13 100m 24f OM4 Plug to Plug with deployable reel £780
14 300m 24f OM4 Plug to Plug with deployable reel £1,931
15
16 IP XLR / D-Series MPO Feed-through Chassis Connector £25
17
18 3m 12f SM MTP to LC Fanout Cable £138
19 3m 12f OM3 MTP to LC Fanout Cable £125
20 3m 12f OM4 MTP to LC Fanout Cable £132
21
22 3m 24f SM MTP to LC Fanout Cable £265
23 3m 24f OM3 MTP to LC Fanout Cable £220
24 3m 24f OM4 MTP to LC Fanout Cable £234
