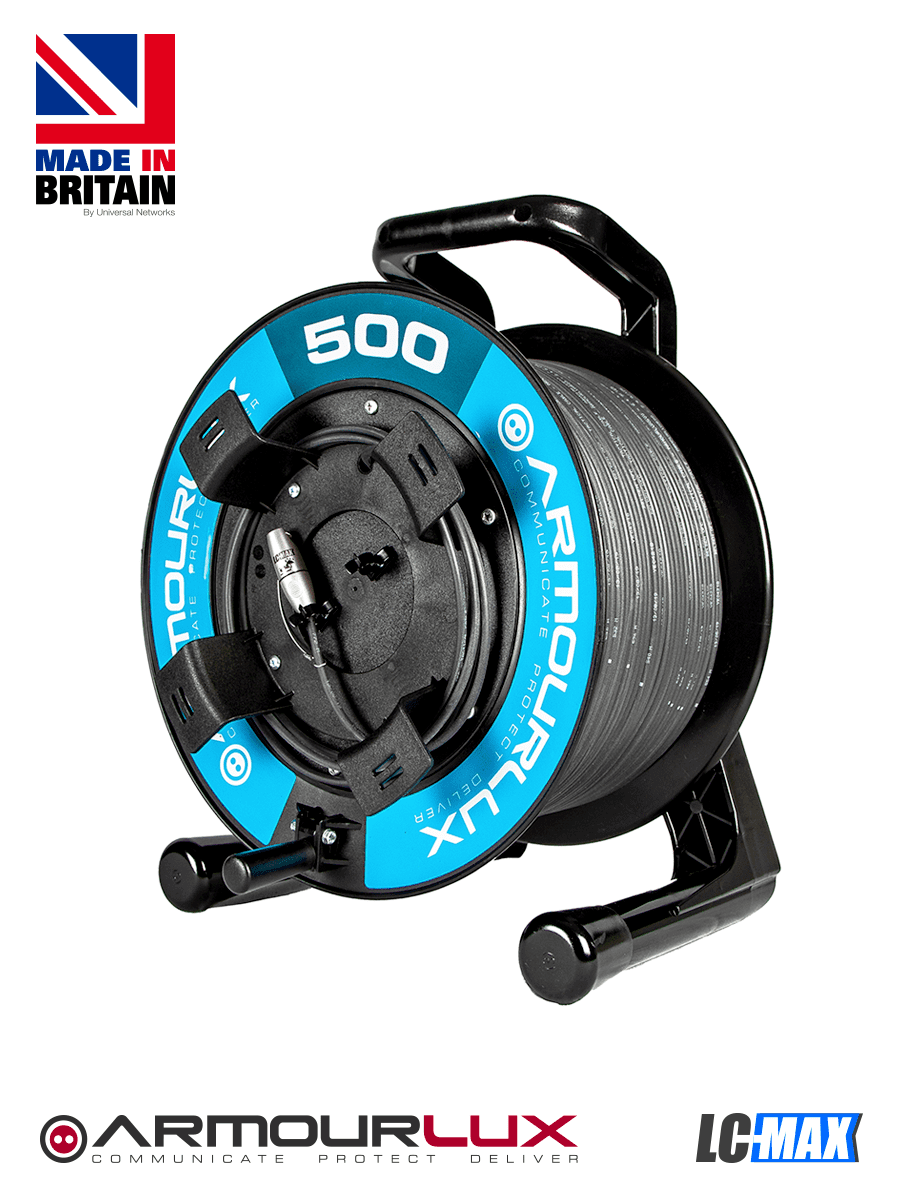

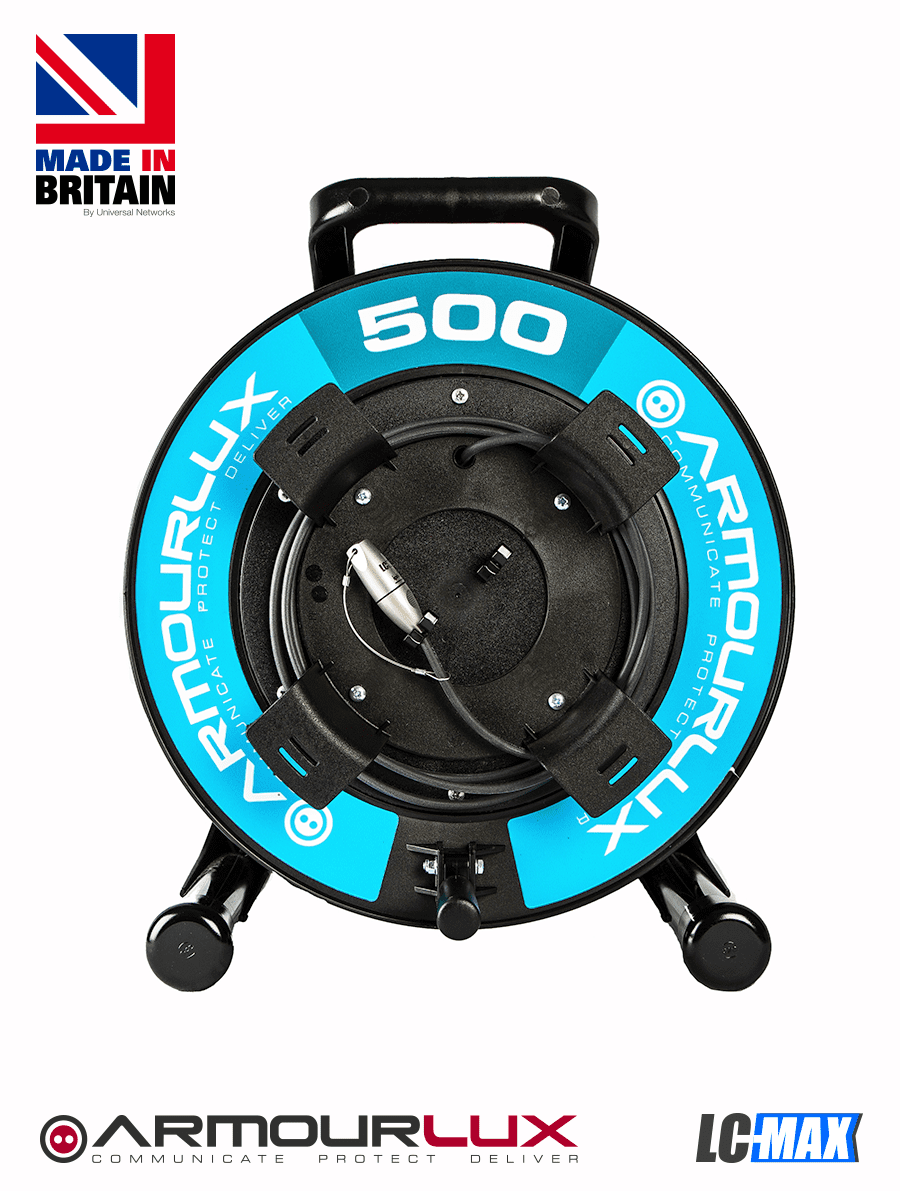

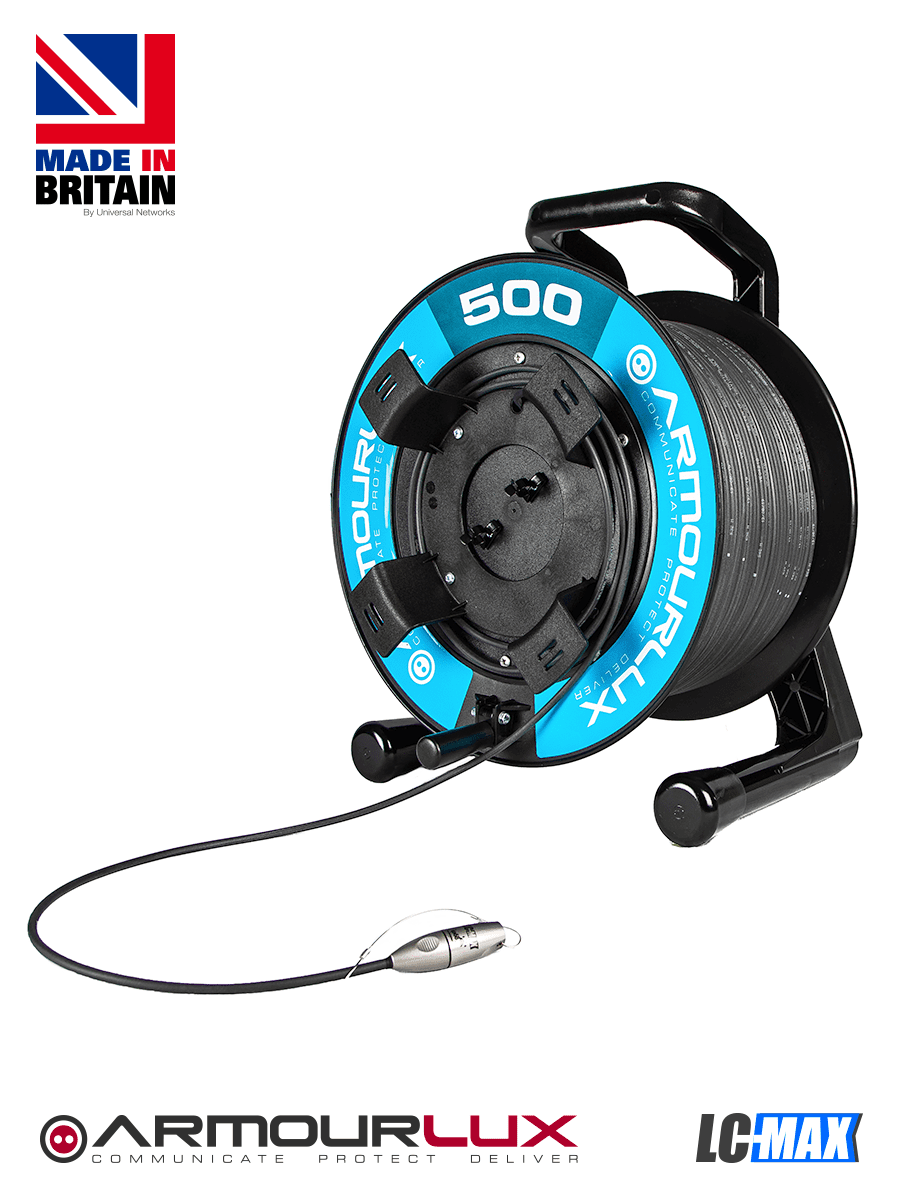

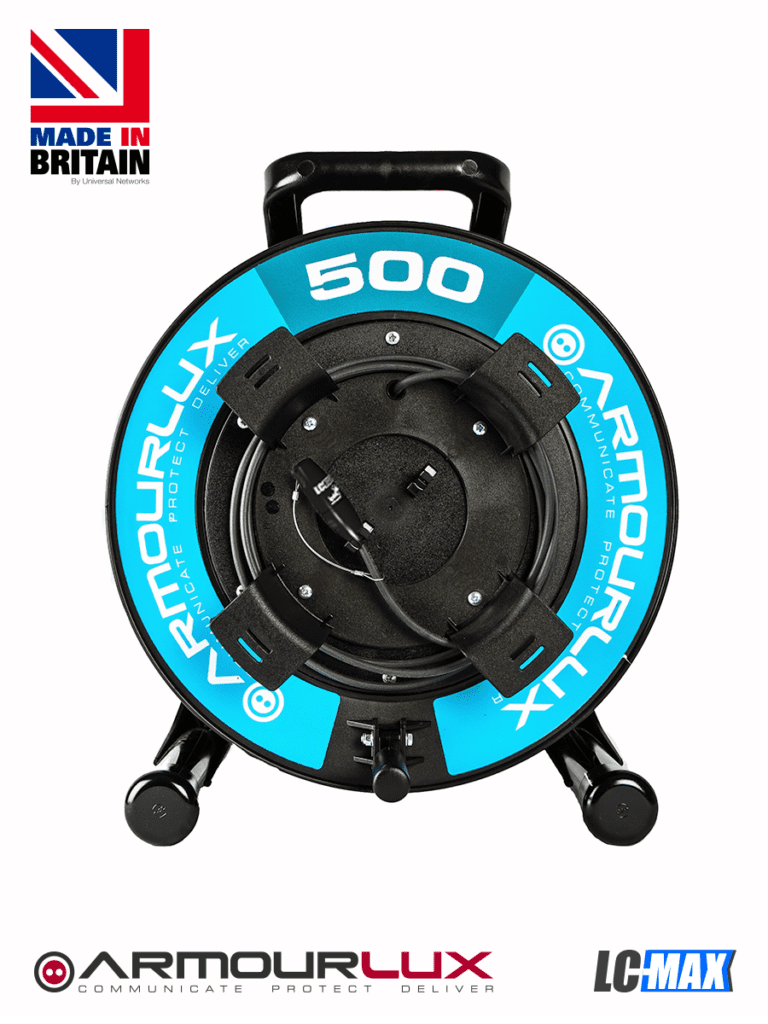

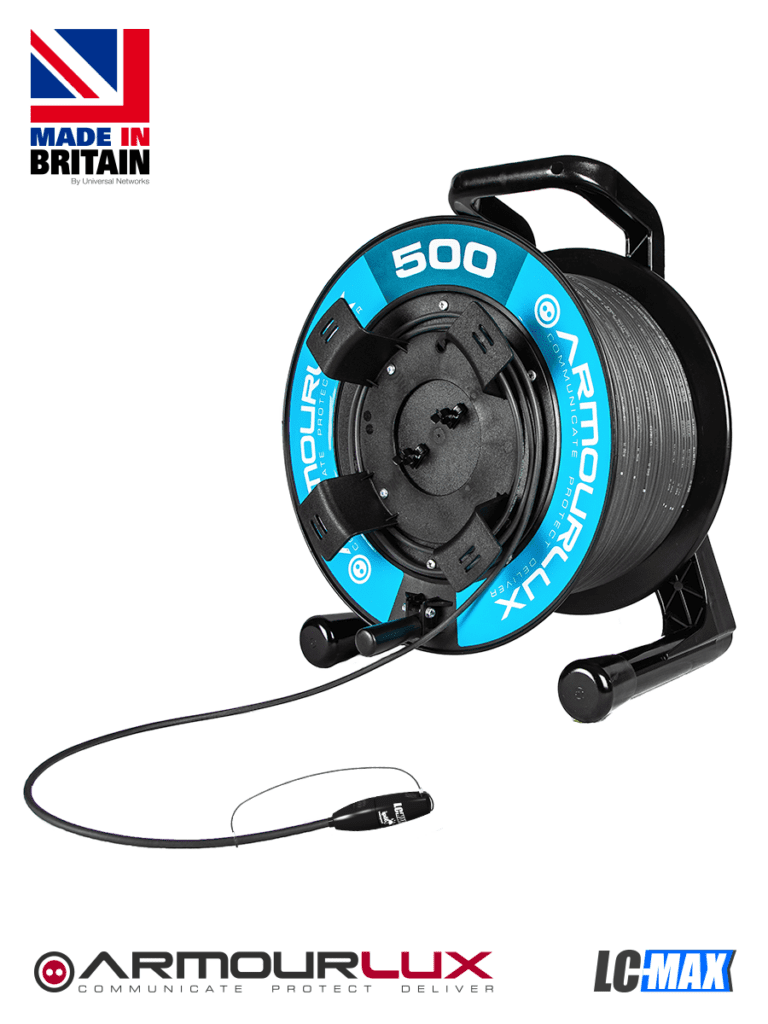

ArmourLux500 with IP68 LC-MAX Connectors

Product Code: AL5MX-XRX-X
Categories: ,

Tactical Belden fibre with a unique high cable retention metal bodied LC connector with a strong & durable metal cap, weatherproof to IP68 standard. The connector plugs straight into any LC socket.  The strongest LC solution available, 2-24* core fibre options.

*Please contact us to check availability of multimode, 8 fibre and above options.

£375.00£2,789.00 (Excl. VAT)

£450.00 (Incl. VAT)

Configure Your Product
OM3 (Multimode)
OS2 (Singlemode)
2
4
8
12
24
Reset

£375.00£2,789.00 (Excl. VAT)

£450.00 (Incl. VAT)

Add to Quote
Add to Quote
Ask a Question

ArmourLux500 with IP68 LC-MAX Connectors

The ArmourLux500 with IP68 LC-MAX connectors is the most durable, portable fibre optic LC solution available. This series features a ruggedised, metal bodied Duplex LC connector that is 100% compatible with standard LC sockets.  Developed exclusively for use with tactical deployable fibre optic, it provides exceptional cable retention, a 6 fold increase over standard LC connectors. The metal cap and casing protect against accidental damage and the IP68 rating safeguards against dust and water when not in use.  The streamline casing design also ensures it is easy to retrieve without snagging.

  • 2-24 fibre
  • Bend insensitive (BI) G657A1 Single mode or BI OM3 multimode option to protect against signal degradation when bending fibres
  • Transit cases also available

FEATURES

The ArmourLux range provides a number of benefits that make this option suitable for harsh environments.

Umbrella with IP68
IP68 RATED

Protective metal cap and shell protects against dust and water to IP68 standard.

Military defence tank
MILITARY GRADE FIBRE

Military grade Belden tactical fibre, designed for harsh environments.

Icon - UK Manufactured
UK MANUFACTURED

Products manufactured in the UK and individually serialised for traceability.

Icon - LC Compatible
LC COMPATIBLE

Can be plugged into standard LC sockets. No adapters needed.

Icon - Bend Insensitive
BEND INSENSITIVE

Bend insensitive multimode and singlemode fibre for minimal signal loss.

Cable Retention
CABLE RETENTION

Metal bodied connector with 6x greater cable retention than standard LC connector.

Wide Operating Temperature
WIDE OPERATING TEMP

Cable operating temperature ranges from -55°C to +85°C.

Portable Deployable Reel
PORTABLE REEL

Includes portable, deployable reel with 3rd flange and friction brake.

Indoor/Outdoor Use
INDOOR/OUTDOOR USE

PUR sheath designed for both indoor and outdoor use.

Why ArmourLux500 with LC-Max connectors?

A Strong, Durable, Reliable Connection

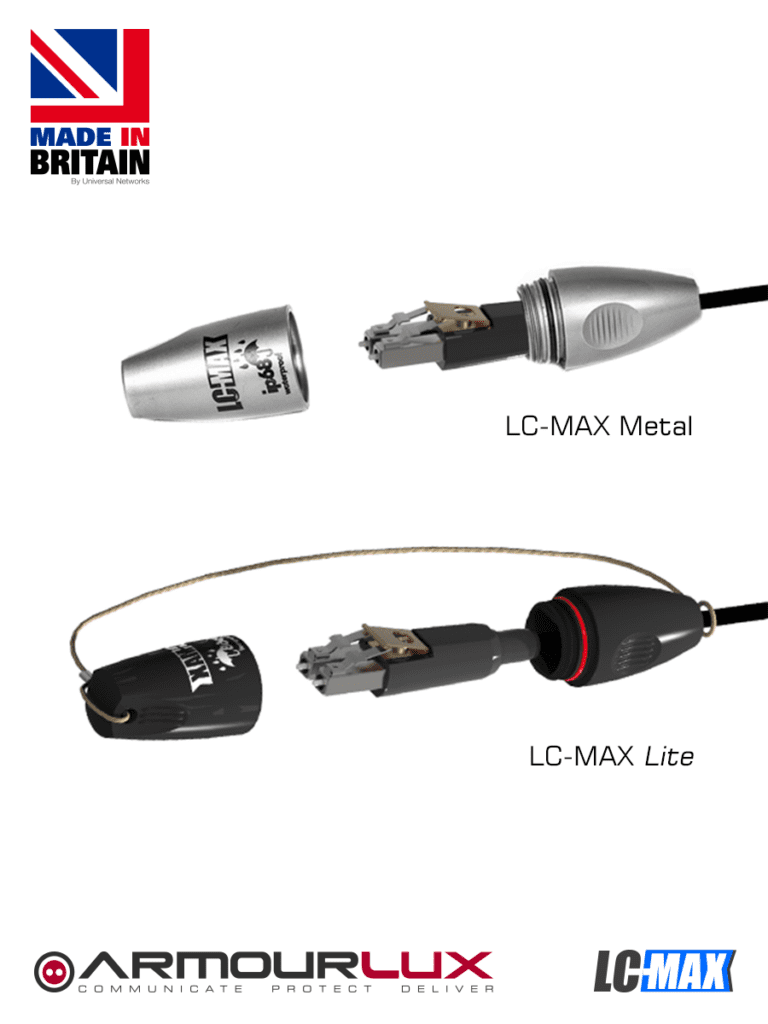

The LC-MAX IP68 connector is an enhancement of the industry standard LC connector. Its cable retention is at least 6x greater than that of a standard LC connector.

LC-MAX ArmourLux Deployable Fibre

It has been ruggedised by the inclusion of a metal body, latch and IP68 rated cover, offering protection when not in use or being retrieved. The streamline design also ensures you have a snag free retrieval.

100% compatible with standard LC Sockets

The LC-MAX is fully compatible with standard LC sockets and equipment; there’s no need for intermediary connection parts. That means you can connect the fibre directly into your equipment and you’re ready to go.

IP68 rated for peace of mind

The metal cap keeps out water and dust when not in use, to protect the fibre connectors and has been tested to IP68 standard.  You can read more about IP ratings here.

Greater reliability in harsh environments

The ArmourLux500 range uses a tough, durable Miltac cable that tightly packs bend insensitive fibres in aramid yarn, ensuring minimal signal loss even if accidentally kinked.

Cable tied in a knot
LC-MAX ArmourLux Deployable Fibre
The reassurance you deserve

All ArmourLux assemblies are made in the UK. We’re also an ISO9001 accredited company, where quality and customer service are our highest priorities. With over 25 years’ experience as a trusted provider of fibre optic cables, you can be reassured we understand the requirements of mobile fibre optic communications.

Connectivity diagram

Q & A

Yes it can. It is based on a standard LC Connector, so it is 100% compatible with standard LC sockets on panels, SFP’s etc.

Unfortunately, a standard LC is not IP rated, so it is not IP rated when connected.  When the cap is affixed, the shell provides IP68 protection for the LC when not in use.

The LC-MAX is an IP68 rated duplex connector, supporting two fibres. We can provide up to 12 of these on each end of a 24-fibre cable.

Yes we can mount LC sockets on the centre plate, please contact us for a quotation

Yes, depending on the length, we can either coil your assembly or put it on a wooden drum, so that you can decant.

Yes, if you contact us we can provide a quotation.  You can choose which connector type is required on the deploy end.

We can supply ArmourLux terminated on X-TREME and other cable options not listed. Please contact us for more information.

Mainland UK
Next working day delivery is offered as standard Monday-Friday for goods that are pre-made, are in stock and are not custom made. This service is only available for shipments to the UK Mainland, excluding the Scottish Highlands. If a quick delivery is important to you, you wish to check a manufacturing time for a custom made item or are placing an order after 3pm, please call the office on 01488 685800; we can confirm the stock availability and dispatch date very promptly.

International (Non-Mainland UK)
If your delivery location falls outside of the Mainland UK (i.e. International or Non-Mainland UK), after placing an order on the website, Universal Networks will contact you via e-mail or telephone to confirm the total cost of the order including delivery to your desired destination. We will then require your Credit or Debit Card details to process an offline payment.

Small Order Handling Charge
For orders under £100, a handling fee of £10 will be added to the basket in addition to the delivery charge.

To read more information, please visit our Delivery FAQ or Delivery Information pages.

Resources



Specification

wdt_ID SPECIFICATION 2 FIBRE 4 FIBRE 8 FIBRE 12 FIBRE 24 FIBRE
1 Cable Diameter 5.4mm 5.8mm 6.4mm 7.3mm 8.5mm
2 Weight/Km 26kg 30kg 37kg 45kg 55kg
3 Tensile Strength Short Term 300N 400N 400N 450N 450N
4 Operating Temperature -55°C to +85°C -55°C to +85°C -55°C to +85°C -55°C to +85°C -55°C to +85°C
5 Crush Long/Short Term 3000N/m / 5000N/m (IEC 60994-2-20) 3000N/m / 5000N/m (IEC 60994-2-20) 3000N/m / 5000N/m (IEC 60994-2-20) 3000N/m / 5000N/m (IEC 60994-2-20) 3000N/m / 5000N/m (IEC 60994-2-20)
wdt_ID REEL CAPACITY 2 FIBRE 4 FIBRE 8 FIBRE 12 FIBRE 24 FIBRE
1 R1 76m 67m 49m 36m 33m
2 R2 141m 123m 90m 66m 61m
3 R3 277m 241m 177m 129m 120m
4 R9 447m 390m 286m 209m 194m
5 R10 710m 618m 454m 331m 308m
6 R6 906m 847m 622m 453m 422m
7 R7 1359m 1270m 933m 680m 633m
