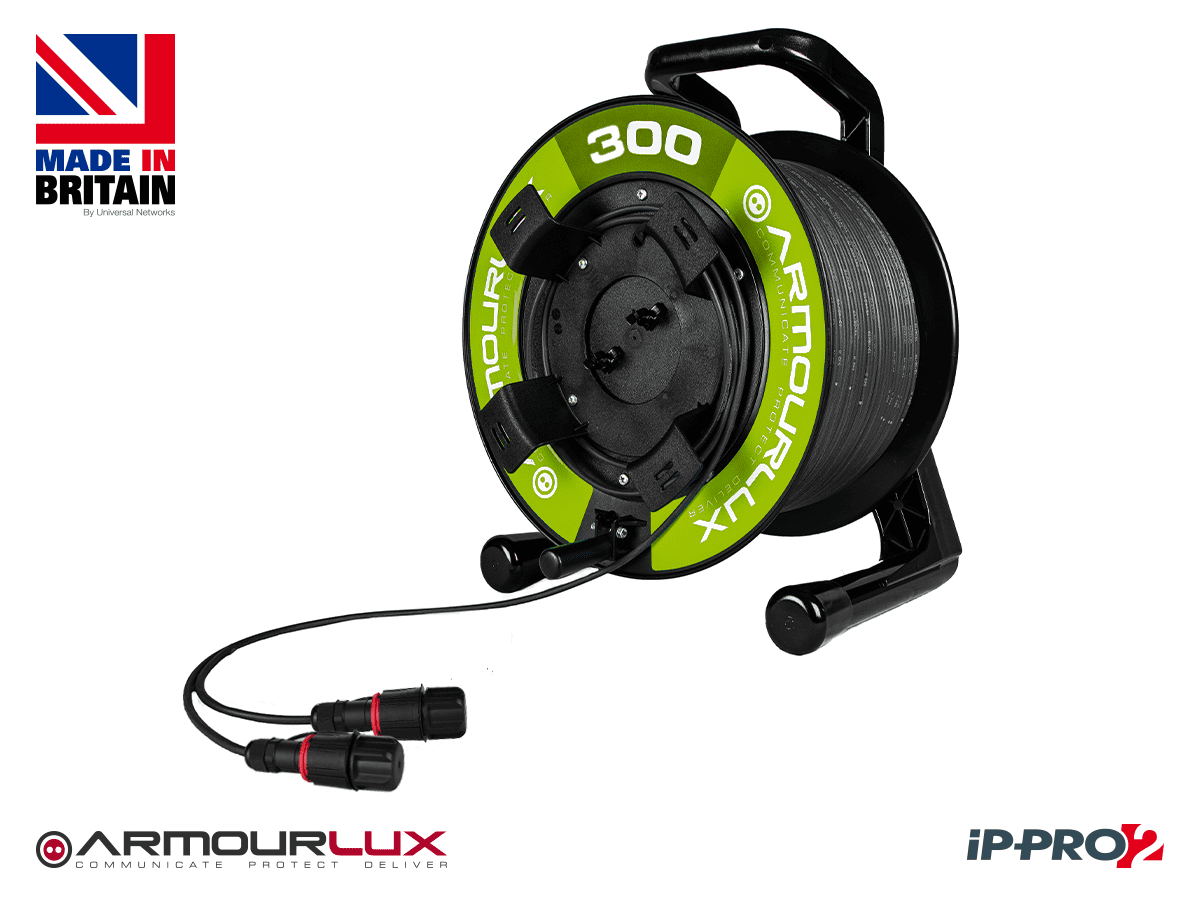

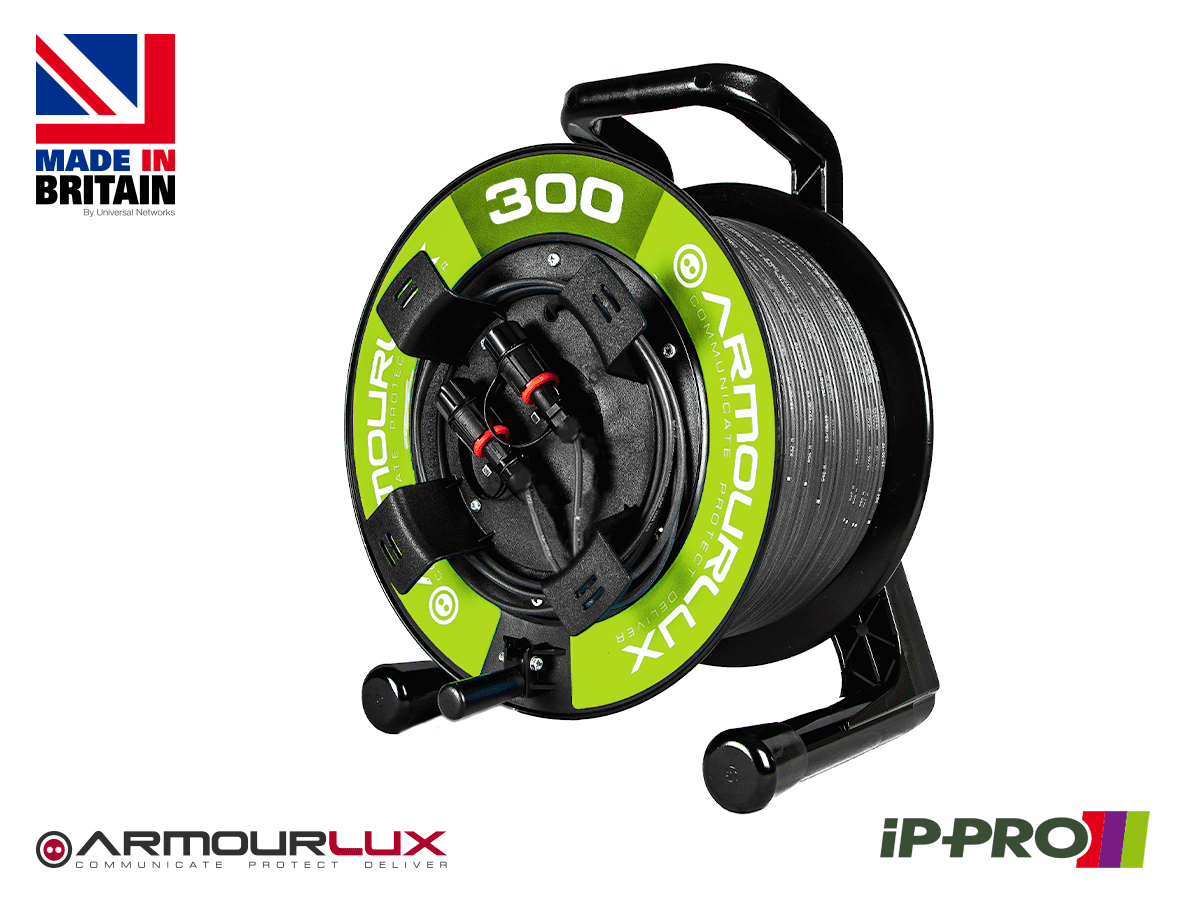

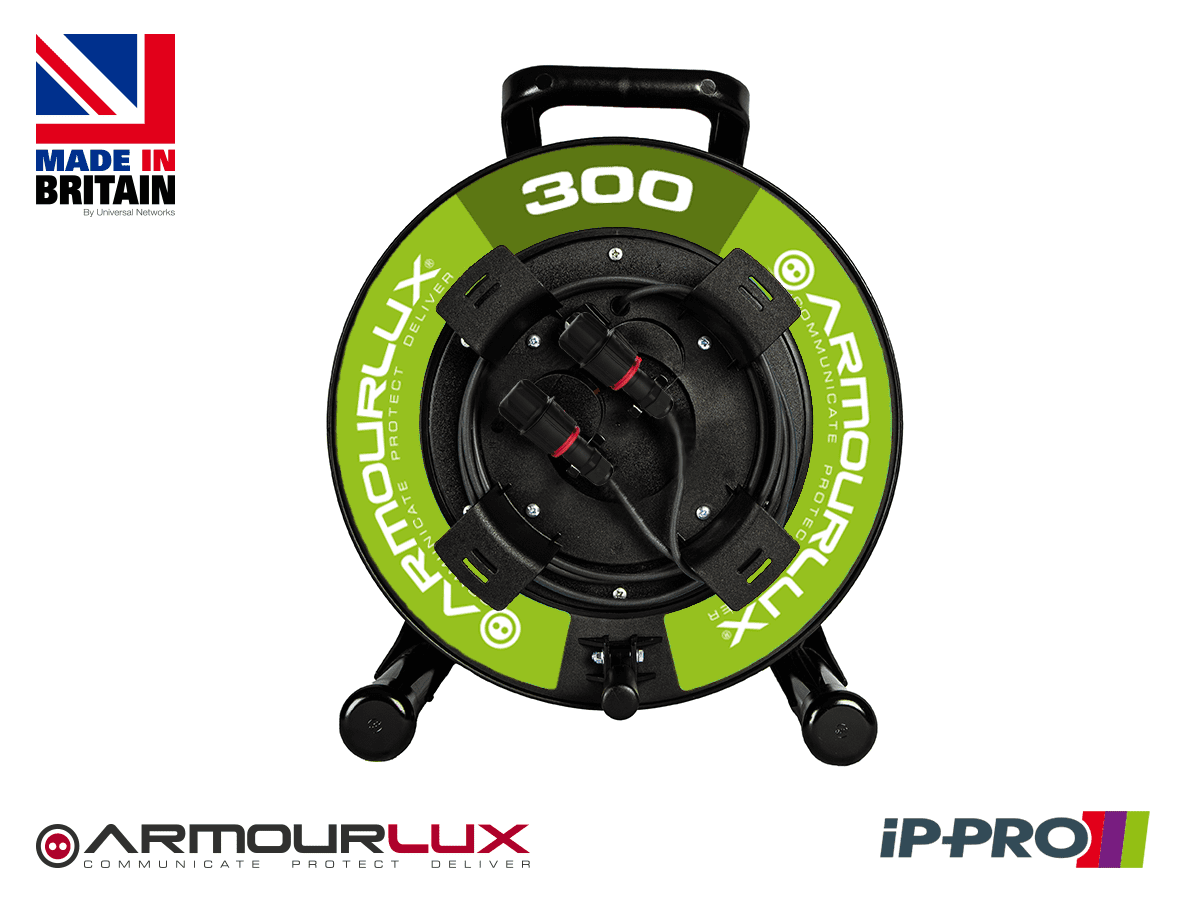

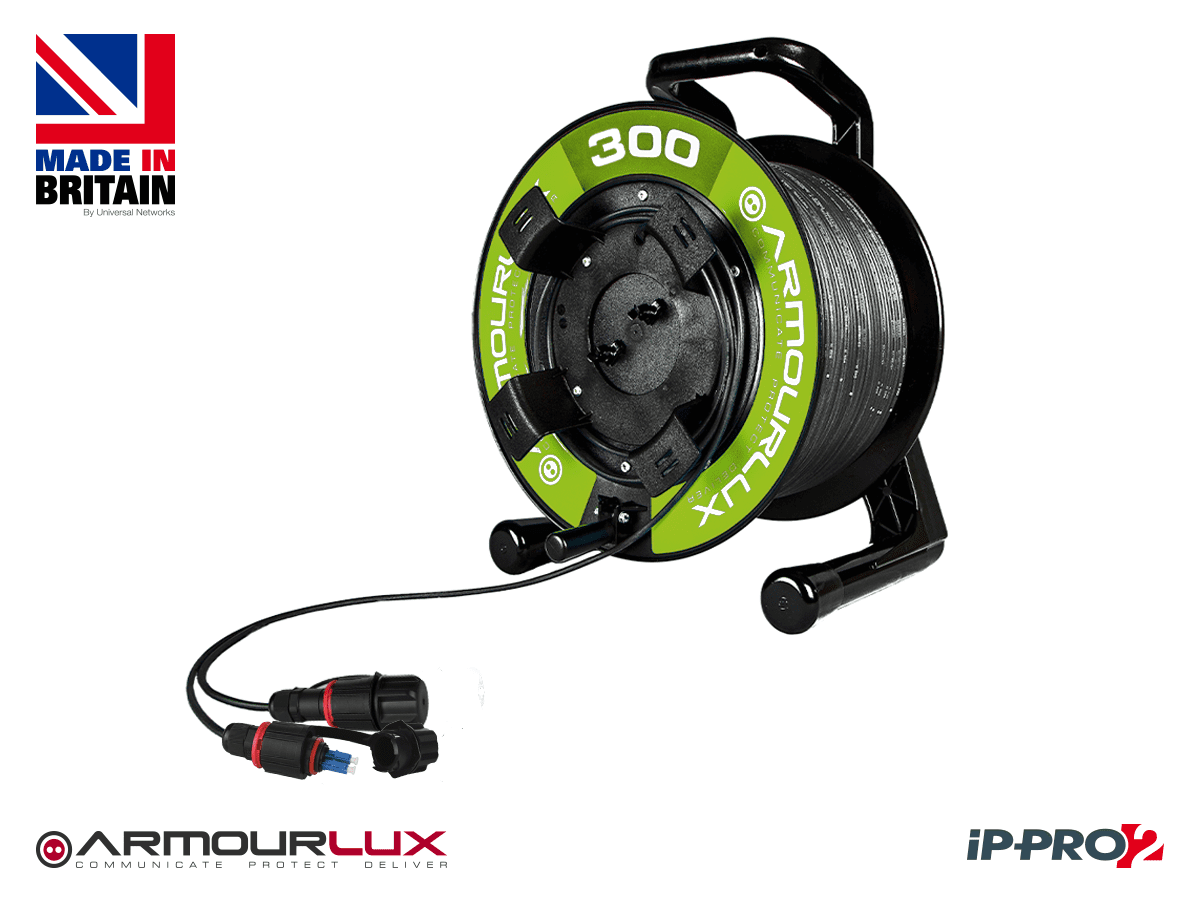

ArmourLux300 Mini IP68 Tactical Deployable Fibre with IP-PRO Connectors

Product Code: AL38XX-RXX-X-X-1
Categories: ,

Tactical fibre coupled with IP68 rated connectors offering a dust free, waterproof fibre connection suitable for harsh environment applications.

2 and 4 fibre options available in singlemode or multimode with 1 or 2x IP-PRO2 connectors*.

*Please contact us to check availability of other options.

£110.00£165.00 (Excl. VAT)

£132.00 (Incl. VAT)

Configure Your Product
OM3 (Multimode)
OS2 (Singlemode)
2
4
Reset

£110.00£165.00 (Excl. VAT)

£132.00 (Incl. VAT)

Add to Quote
Add to Quote
Ask a Question

ArmourLux300 Mini IP68 with IP-PRO Connectors

With rugged, IP-PRO connectors offering a dust free, waterproof connection, the ArmourLux300 Mini range has been designed to offer maximum protection for harsh environment applications ranging from military tactical communications to broadcasting and events.

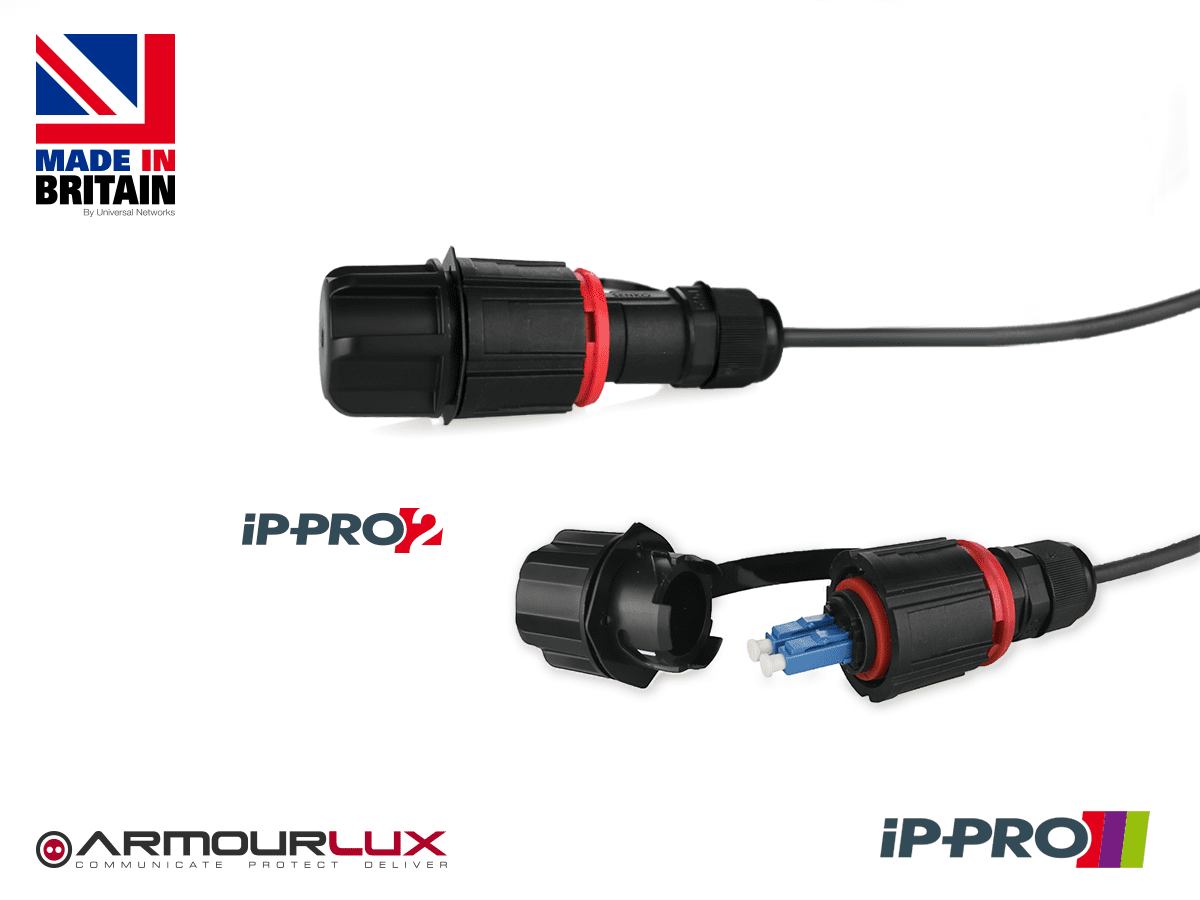

The range utilises standard LC connectors housed within an IP68 rated protective shell. The connectors can be mated easily with a corresponding IP68 bulkhead or panel mounted sockets and patched into equipment to provide a water and dust proof mating. Each plug comes with a cap, which is retained on a lanyard when not in use.

The ArmourLux300 Mini range uses a durable, bend insensitive cable with an outer diameter of just 3.4mm, making it thinner and lighter weight compared to its ArmourLux500 counterpart. The thinner design saves space, making it easier to deploy, transport and store.

All our ArmourLux assemblies are made in the UK. Additionally, we’re an ISO9001 accredited company, where quality and customer service are our highest priorities. With over 25 years’ experience of being a trusted provider of fibre optic cables, you can be reassured that we understand the requirements of mobile fibre optic communications.

Military
HE Industry
Broadcast
  • Singlemode or multimode
  • IP-PRO2: 2 or 4 fibre (1 or 2 duplex connectors)
  • Transit cases also available

FEATURES

The ArmourLux300 Mini range provides a number of benefits that make this option suitable for harsh environments.

Umbrella with IP68
IP68 RATED

Protective metal cap and shell protects against dust and water to IP68 standard.

Icon - Bend Insensitive
BEND INSENSITIVE

Bend insensitive multimode and singlemode fibre for minimal signal loss.

Icon - UK Manufactured
UK MANUFACTURED

Products manufactured in the UK and individually serialised for traceability.

Wide Operating Temperature
WIDE OPERATING TEMP

Cable operating temperature ranges from -70°C to +85°C.

Portable Deployable Reel
PORTABLE REEL

Includes portable, deployable reel with 3rd flange and friction brake.

Indoor/Outdoor Use
INDOOR/OUTDOOR USE

PUR sheath designed for both indoor and outdoor use.

Breakout Options

AL300 IP-PRO2 Breakout

Connectivity diagram

Service & Repair Web Banner
Bespoke Web Banner

Q & A

Yes we can mount IP sockets on the centre plate, please contact us for a quotation.

Yes, we can mix and match connectors as required.  With standard connectors (LC/ST/SC) we can also offer protection in a padded sock or removable tube.

Yes, depending on the length, we can either coil your assembly or put it on a wooden drum, so that you can decant.

Yes, if you contact us we can provide a quotation.  You can choose which connector type is required on the deploy end.

We can supply ArmourLux terminated on X-TREME and other cable options not listed. Please contact us for more information.

Mainland UK
Next working day delivery is offered as standard Monday-Friday for goods that are pre-made, are in stock and are not custom made. This service is only available for shipments to the UK Mainland, excluding the Scottish Highlands. If a quick delivery is important to you, you wish to check a manufacturing time for a custom made item or are placing an order after 3pm, please call the office on 01488 685800; we can confirm the stock availability and dispatch date very promptly.

International (Non-Mainland UK)
If your delivery location falls outside of the Mainland UK (i.e. International or Non-Mainland UK), after placing an order on the website, Universal Networks will contact you via e-mail or telephone to confirm the total cost of the order including delivery to your desired destination. We will then require your Credit or Debit Card details to process an offline payment.

To read more information, please visit our Delivery FAQ or Delivery Information pages.

Resources



Specification

wdt_ID SPECIFICATION 2 FIBRE 4 FIBRE
1 Cable Diameter 3.4mm 4mm
2 Weight/Km 12kg 14kg
3 Tensile Strength Short Term 1000N 1000N
4 Operating Temperature -70°C to +85°C -70°C to +85°C
5 Crush Long/Short Term 3000N/m / 5000N/m (IEC 60794-2-20) 3000N/m / 5000N/m (IEC 60794-2-20)
wdt_ID REEL CAPACITY 2 FIBRE 4 FIBRE
1 R1 207m 150m
2 R2 384m 277m
3 R3 750m 542m
4 R9 1206m 871m
5 R10 1925m 1391m
6 R6 2637m 1905m
7 R7 3955m 2857m

Looking For A Bespoke Solution To Suit You?
