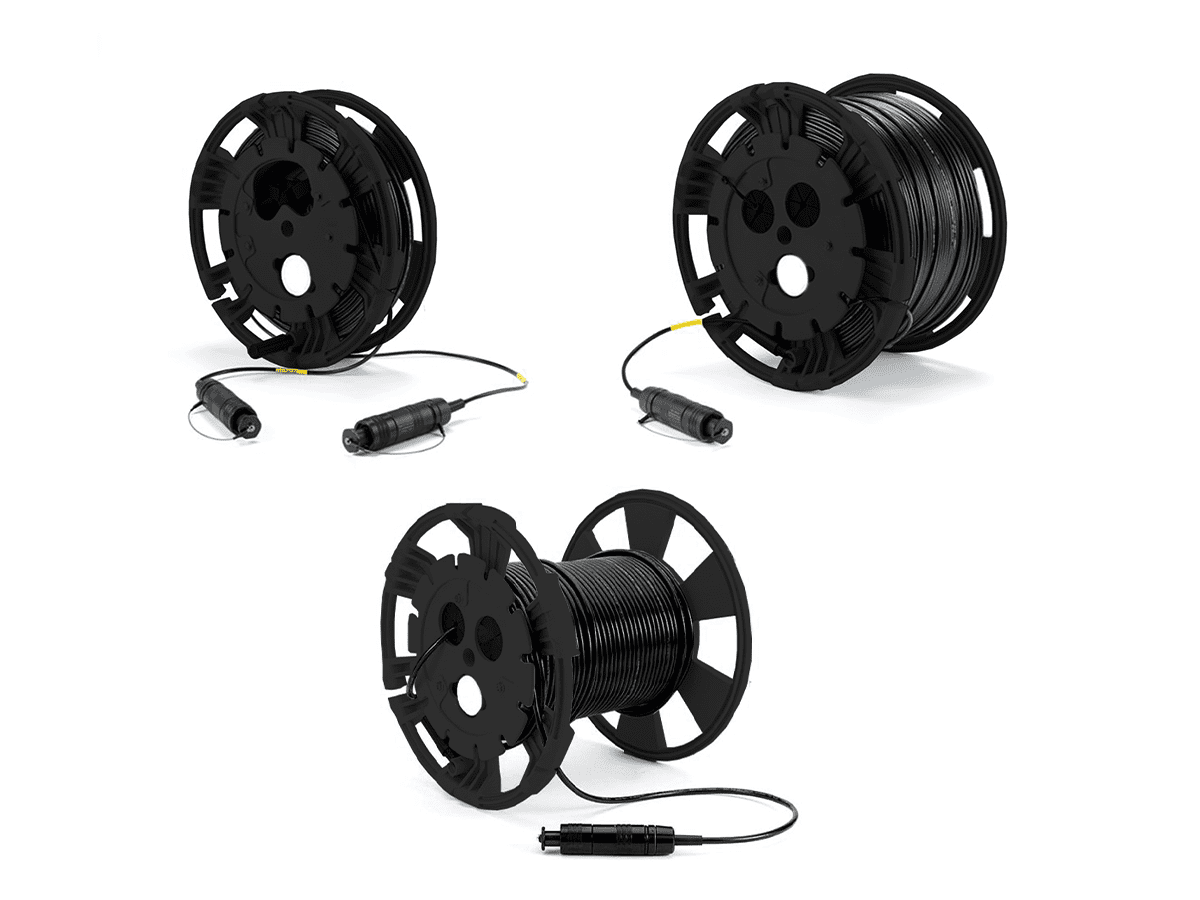

OCC Modular Advanced Reel System (MARS), Round Axle Hole, No Cleaning Kit, Black

Product Code: ACR
Categories: , ,

The OCC MARS cable reel is a US Army approved system designed specifically for the demanding needs of harsh environment fibre optic installations. This lightweight, modular cable deployment system is ideal for applications where rapid deployment and retrieval and efficient storage is required.

Colour: Black (for desert tan or green please contact us)

Note: Reel only – cables, connectors, frames and accessories must be ordered separately.

£379.00£925.00 (Excl. VAT)

£454.80 (Incl. VAT)

Configure Your Product
0100
0300
0500
0750
1000
1250
Reset

£379.00£925.00 (Excl. VAT)

£454.80 (Incl. VAT)

Add to Quote
Add to Quote
Ask a Question

The OCC Modular Advanced Reel System (MARS), is a lightweight cable deployment reel system designed specifically for the requirements of fibre optic installations in demanding, harsh environments.

Unlike metal-style reels, MARS offers a modular system constructed of an impact modified polymer that is easily transported, making it ideal for applications where cable needs to be deployed and reeled in quickly and stored efficiently.

In conjunction with the vast array of reel options, MARS offers a variety of deployment options, including optional frames, backpacks, shipping cases and acquisition platforms throughout.

The OCC MARS reel can be used with simple deployable axles or with integrated A-frames, cable acquisition cradles, transit case systems, tripods, bumper mounts, backpacks and backpacks with fibre optic slip rings and the cartridge system.

This robust, military approved solution enables customers to meet the demands of diverse applications and uses with one modular reel and accessories platform.

FEATURES

The OCC range provides a variety of benefits that makes this option well suited for harsh environments and applications requiring easy deployment and efficient storage. Applications include, but are not limited to, mobile emergency telecoms stations, mobile tactical shelters, broadcast, emergency restoration and deployable communications.

MARS Reel Icon-68
Lightweight, Durable Reel

Fabricated with an impact absorbing polymer material to provide strength and durability whilst remaining lightweight. Material also eliminates rust resulting from field operation.

OCC Connector
Integrated Connector Storage

Allows multi-channel cylindrical connectors to be stored and locked in place for transit and storage.

Rugged Icon
Robust & Rugged

Suitable for applications where repeated deployment and use in harsh, challenging environments is required.

Coiled Cable Icon
Integrated Cable Storage

Enables deployment of small lengths of cable without the need to unspool the entire cable payout.

Lorry Icon (Grey)
Easy Transportation

Moulded hand openings allow for easy transportation and deployment.

Reliable Locking
Interlocking Stacking System

Interlocking stacking system enables reels to be stacked and interlocked during transit.

VIDEOS

OCC MARS Reels

OCC’s Modular Advanced Reel System (MARS), is designed specifically for the demanding needs of harsh-environment fibre optic installations.

Offering a lightweight, modular cable deployment reel system constructed of an impact modified polymer that is easily transported and is ideal for applications where cable needs to be deployed and reeled in quickl and stored efficiently.

OCC Reel Drop

To prove the ruggedness and reliability of it’s reel system, OCC performed a 32ft drop of one of their fully loaded cable reels.

Where other reels almost always break and become inoperable when dropped from as little as six or seven foot heights, OCC repeatedly dropped the new reels, fully loaded with cable, from heights of 32ft with no resulting damage.

OCC MARS Cartridge System

The MARS Cartridge System offers the most advanced, self contained fibre optic reeling system for broadcast, military or deployable communication environments.

MARS reels are designed to inter-operate across a fully family of reel accessories. This system employs many of the same cradle features found in the MARS Cradle System (reel release knob and roller reels) allowing multiple reels to be exchanged within one platform.

Military Banner

Q & A

Mainland UK
Next working day delivery is offered as standard Monday-Friday for goods that are pre-made or in stock. Delivery times for Custom Made to Order items will vary, please call us to confirm delivery times. This service is only available for  shipments to the UK Mainland, excluding the Scottish Highlands. If a quick delivery is important to you, you wish to check a manufacturing time for a custom made item or are placing an order after 3pm, please call the office on 01488 685800; we can confirm the stock availability and dispatch date very promptly.

International (Non-Mainland UK)
If your delivery location falls outside of the Mainland UK (i.e. International or Non-Mainland UK), after placing an order on the website, Universal Networks will contact you via e-mail or telephone to confirm the total cost of the order including delivery to your desired destination. We will then require your Credit or Debit Card details to process an offline payment.

Small Order Handling Charge
For orders under £100, a handling fee of £10 will be added to the basket in addition to the delivery charge.

To read more information, please visit our Delivery FAQ or Delivery Information pages.

Resources



Specification

wdt_ID Reel Capacity 2 Fibre 4 Fibre 8 Fibre 12 Fibre 24 Fibre

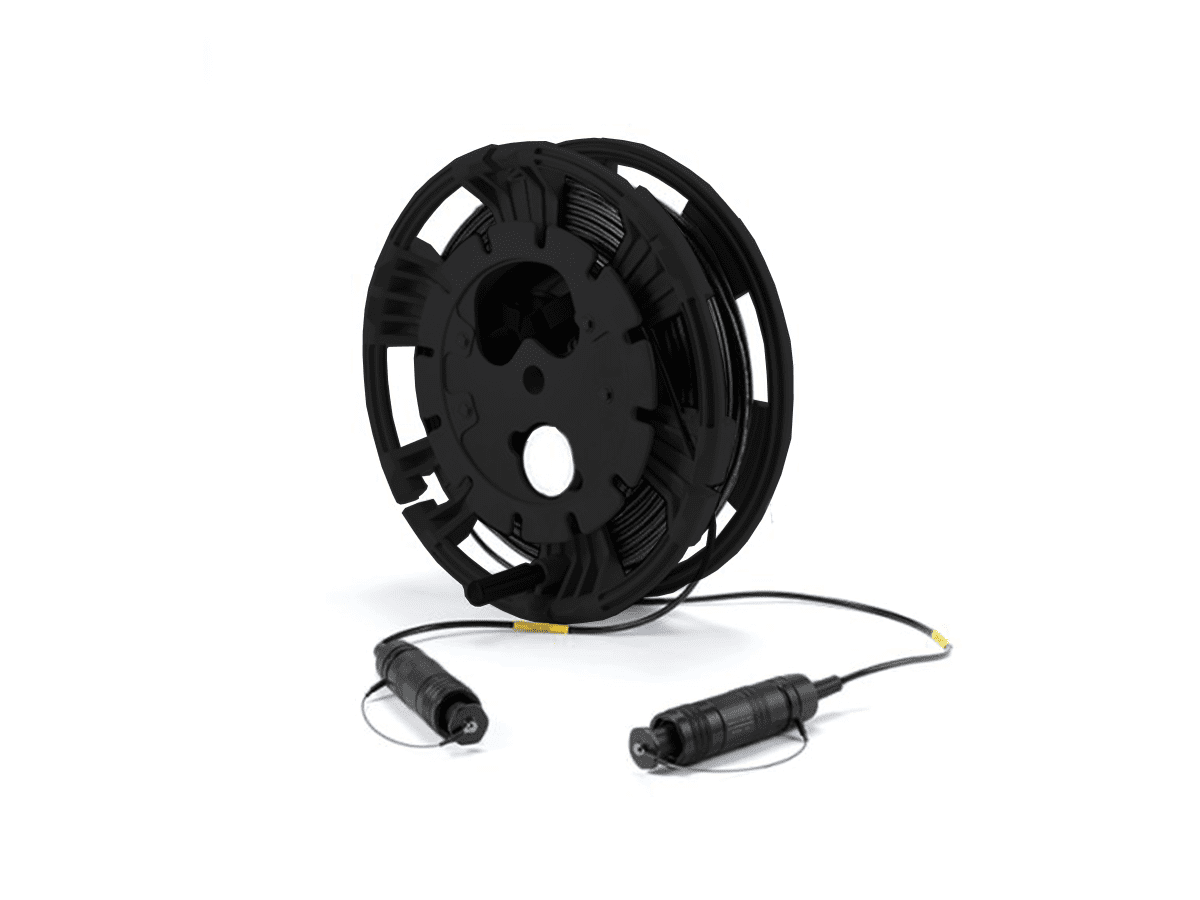

6 ACR-0100 117 102 75 54 51

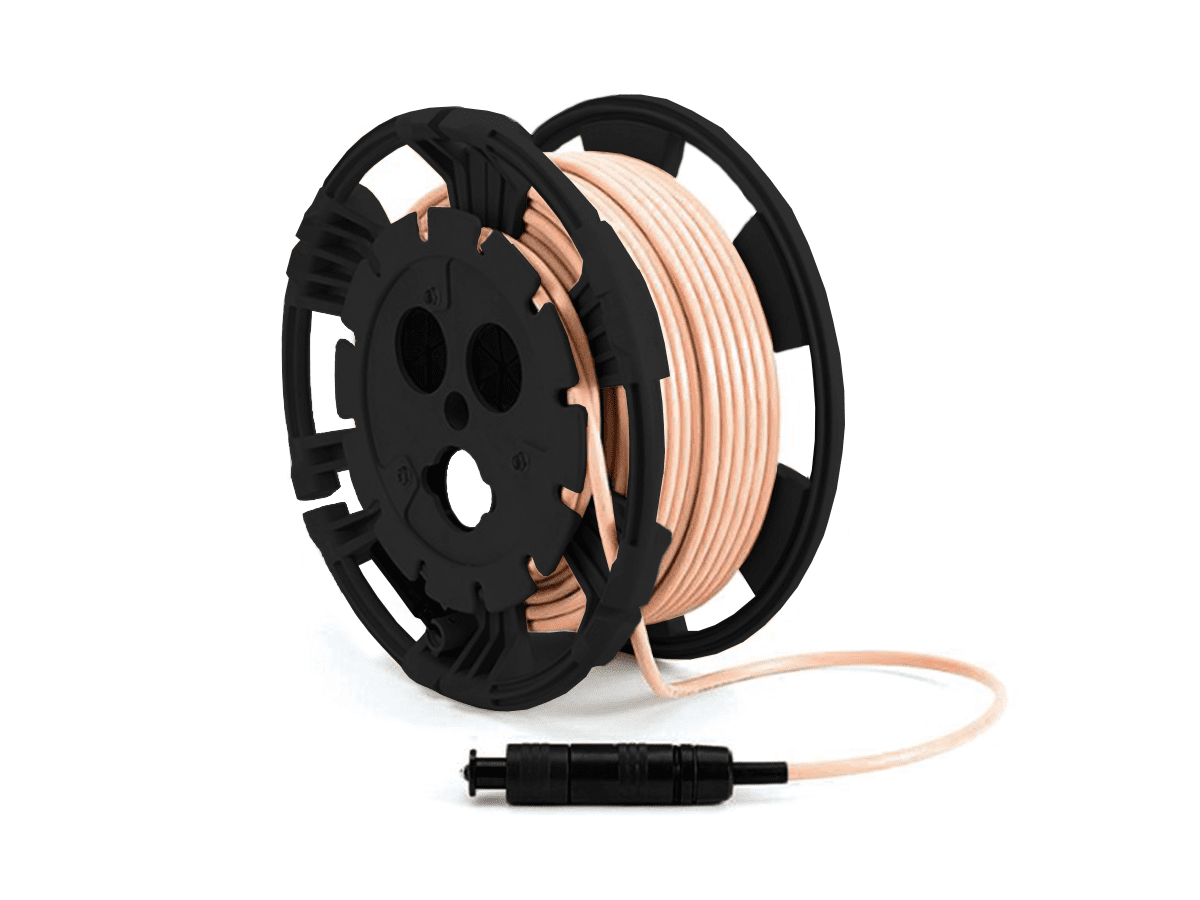

7 ACR-0300 320 279 205 149 139

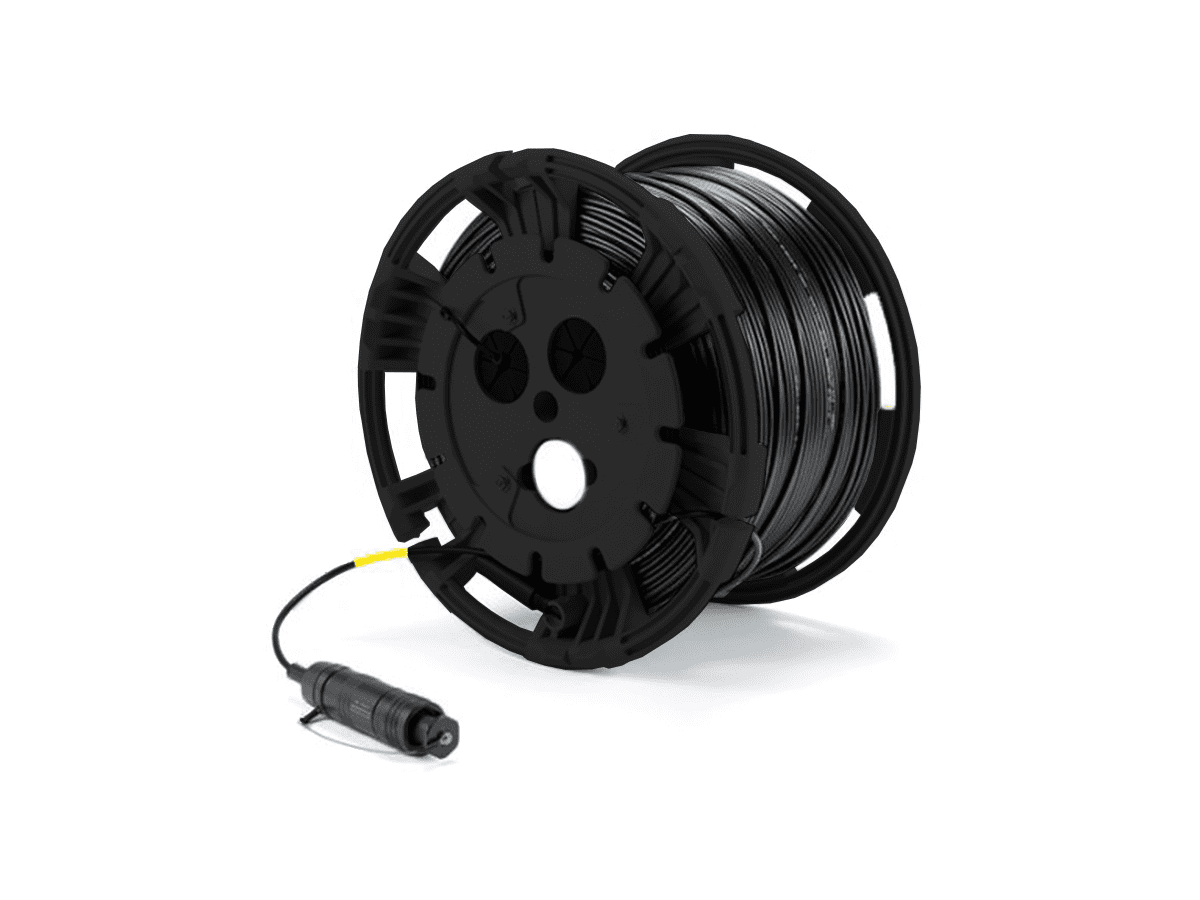

8 ACR-0500 512 446 328 239 222

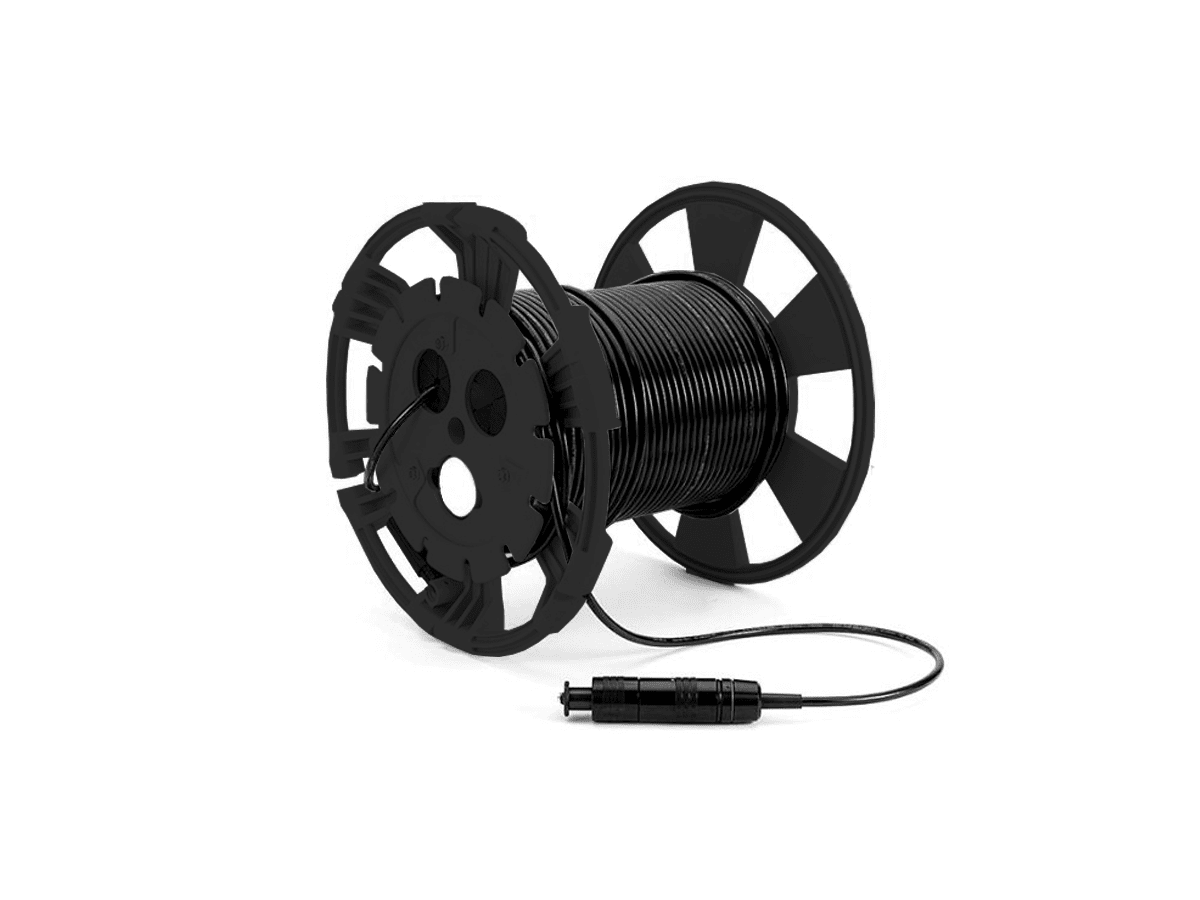

9 ACR-0750 770 670 493 359 334

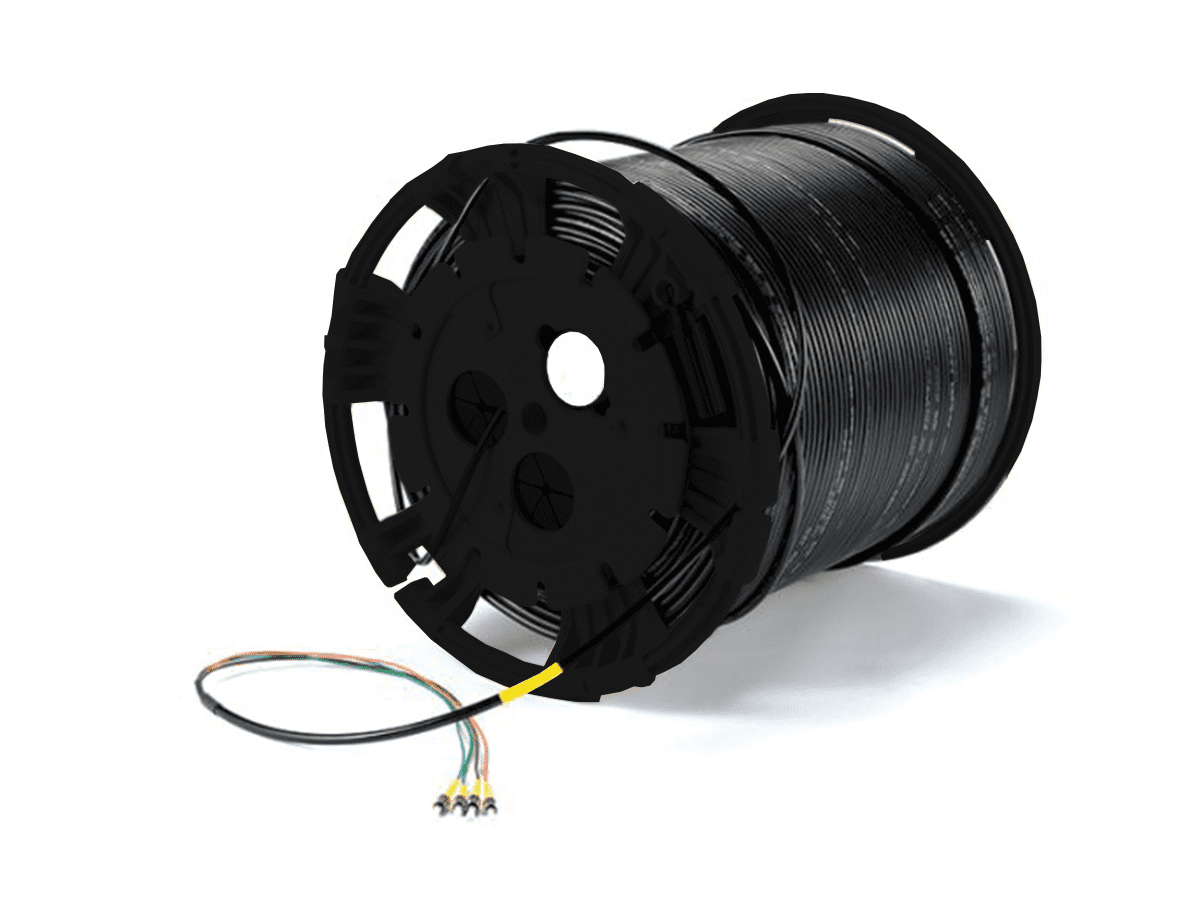

10 ACR-1000 1025 893 656 478 445
11 ACR-1250 1262 1099 808 588 548
wdt_ID Product Code Flange Diameter (external) Width (external) Weight
1 ACR-0100-B-X-1 432mm 127mm 4.3kg
2 ACR-0300-B-X-1 432mm 185mm 5.0kg
3 ACR-0500-B-X-1 432mm 261mm 5.2kg
4 ACR-0750-B-X-1 432mm 363mm 5.4kg
5 ACR-1000-B-X-1 432mm 464mm 5.9kg
6 ACR-1250-B-X-1 432mm 566mm 6.3kg
