Neutrik opticalCON LITE Tactical Patch Cable

Product Code: NKOXXXX-L
Categories: , ,

A cost effective, lightweight solution designed to allow extreme bending without fibre breakage and absorb high lateral forces.

£110.75£375.22 (Excl. VAT)

£132.90 (Incl. VAT)

Configure Your Product
Enter desired length between 1m & 200m

£110.75£375.22 (Excl. VAT)

£132.90 (Incl. VAT)

Add to Quote
Add to Quote
Ask a Question

Neutrik opticalCON® LITE Tactical Patch Cable

Neutrik’s opticalCON® LITE is a semi-rugged fibre optical connection suitable for a wide range of applications. Its connectors offer a cost effective and lightweight solution in a robust housing. The unique, compact design of the tactical patch cable allows extreme bending without fibre breakage and absorbs high lateral forces. As a result, it is an ideal choice for both permanent and semi-permanent installations such as server rooms, patch fields, and indoor cabling.

As well as harsh environment applications, there is also a demand for quality fibre connections for semi-rugged applications, such as patching or permanent installations. These applications require a focus on costs and a sealing shutter is not required. The opticalCON LITE range couples high performance with a cost effective, compact, and light weight design. It is fully compatible with the standard opticalCON chassis connectors.

  • Singlemode or multimode
  • PC or APC polarity (singlemode only)
  • 2-24 fibre
  • Custom lengths also available – please contact us to discuss


The Neutrik range provides a range of benefits that make this option well suited for harsh environments and industries requiring temporary data connectivity.


Suitable for installations such as server rooms, patch fields or indoor cabling.

Reliable Locking

Reliable Push-Pull locking mechanism.

Easy Clean

Easy to clean, no special tools required.

IP65 Rated

Dirt, dust and water protection to IP65 in mated condition.



Rugged and lightweight 2-channel patch cable, excellent cable retention due to aramid yarn, black PVC outer jacket, available in multi- and singlemode (PC or APC), suitable for permanent and temporary installation.

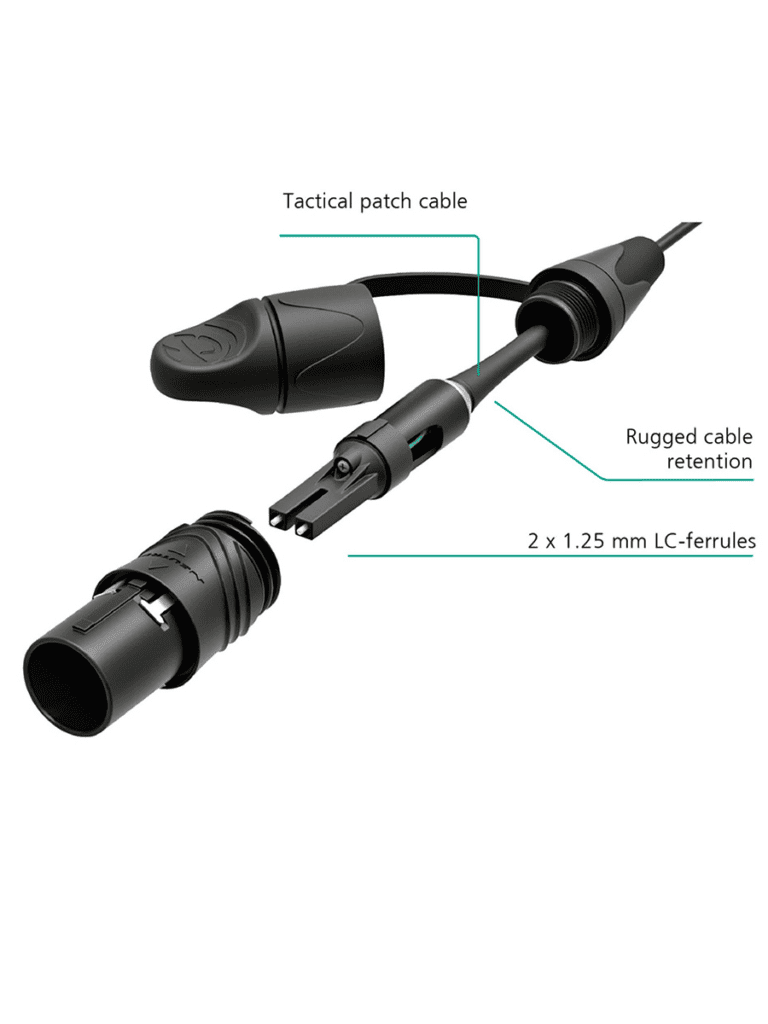

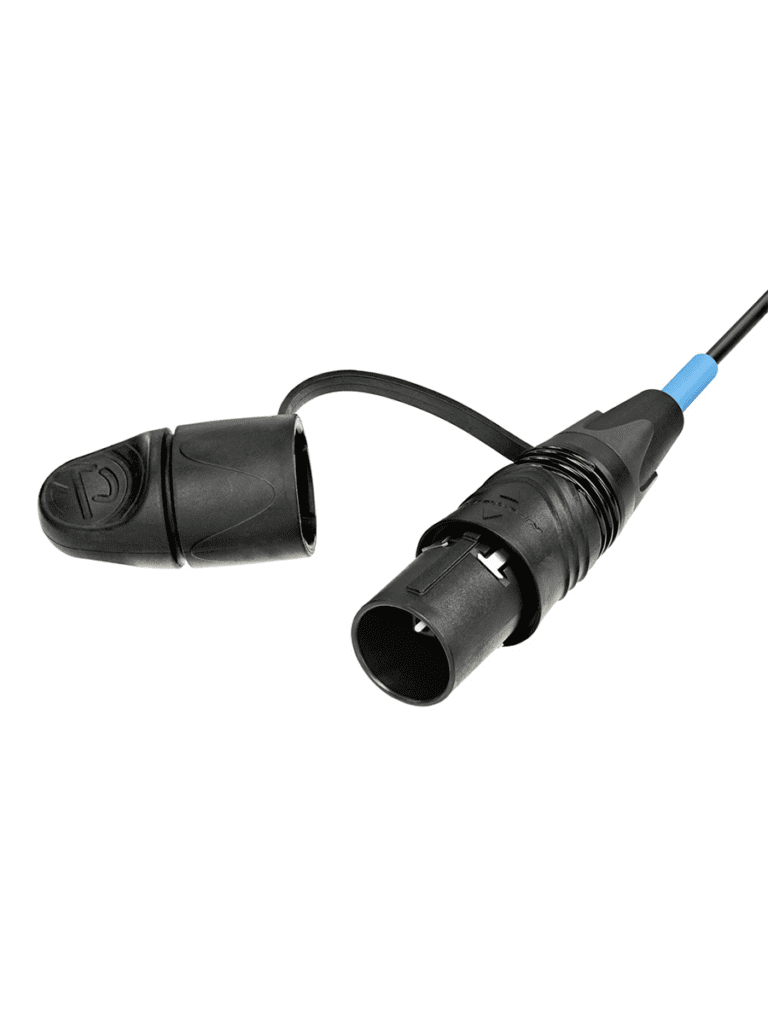

Neutrik opticalCON DUO LITE

Lightweight tactical patch cable, 4×900/125 micron fibres, rugged cable retention due to aramid yarn, black PVC outer jacket, available in multi- and singlemode (PC or APC), designed for permanent or semi-permanent installations.

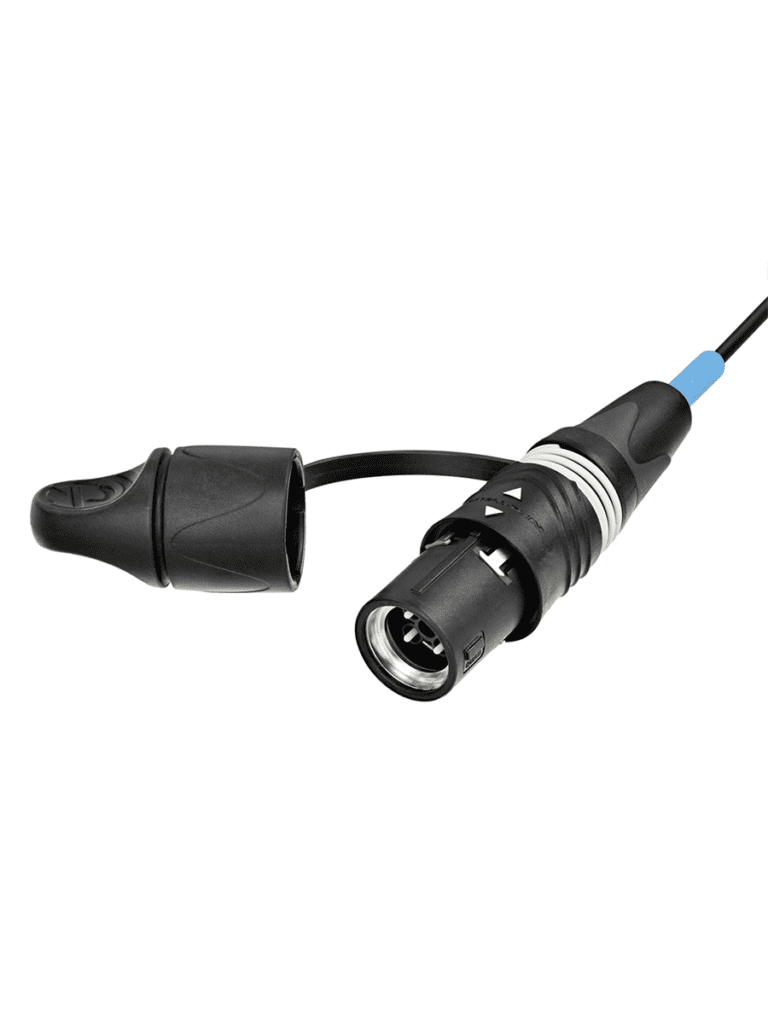

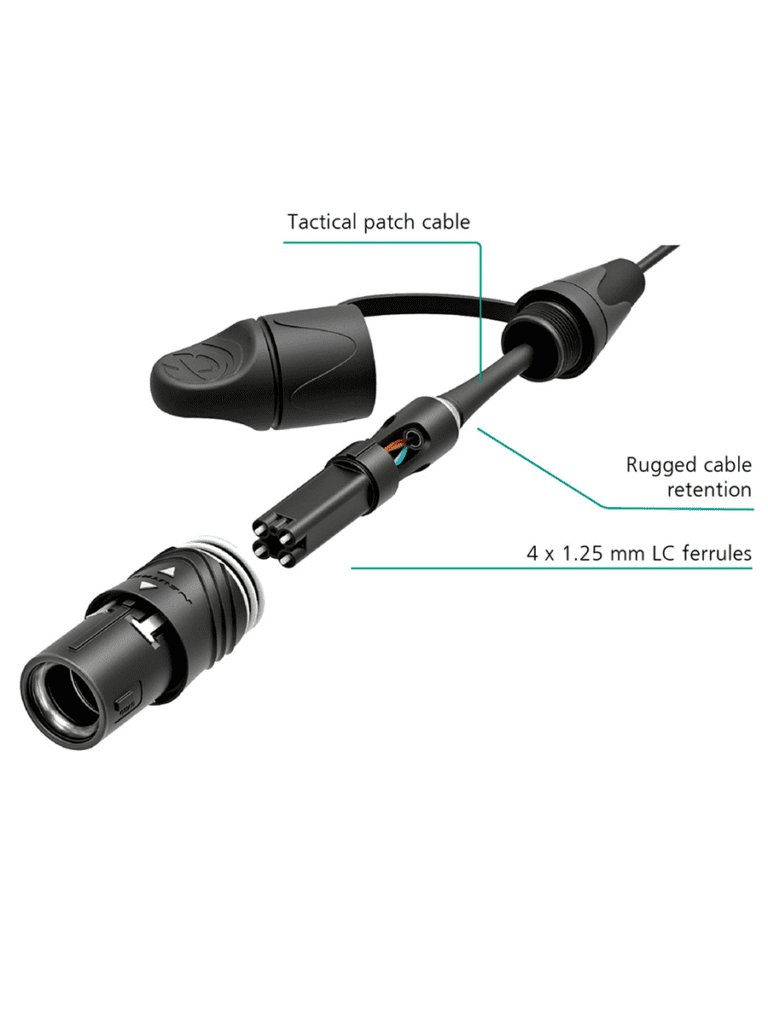

Neutrik opticalCON QUAD LITE
opticalCON MTP 12 LITE

Rugged tactical patch cable, 12×250/125 micron fibres, aramid yarn for appropriate cable retention, black PVC outer jacket, available in multimode PC or singlemode APC, suitable for permanent or semi-permanent installations.

Neutrik opticalCON MTP12 LITE

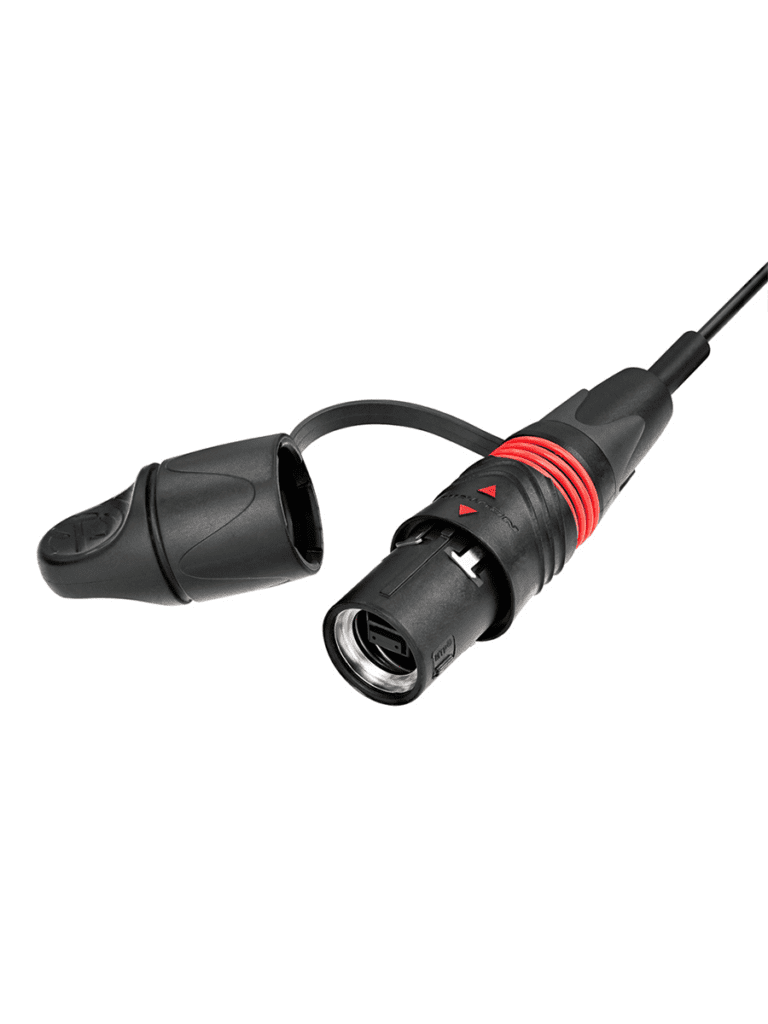

opticalCON MTP 24 LITE

Rugged tactical patch cable, 24×250/125 micron fibres, aramid yarn for appropriate cable retention, black PVC outer jacket, available in multimode PC or singlemode APC, suitable for permanent or semi-permanent installations.

Neutrik opticalCON MTP24 LITE

Tactical Patch Cable

Conventional patch cables are sensitive in terms of undercutting the minimum bending radius and lateral pressure. Neutrik’s tactical patch cables contain a unique fibre design including a protection layer which allows bending with minimal radius and increased lateral pressure. Therefore the tactical patch cables are the right choice for permanent or semi-permanent applications.

Neutrik opticalCON LITE Tactical Fibre

Q & A

Yes, all our cables are made to order, so we can supply in any length to meet your exact requirements. Please contact us and we will send you a formal quote.

Yes, we can repair/service opticalCON DUO and QUAD cables in house, both Advanced and LITE.  For opticalCON MTP we can arrange the repair or service though Neutrik.

We have some cables in stock that are available to loan or hire. Please call us on 01488 685800 and we can check we have the products you need.

Generally these cables are made to order, so the turnaround can vary from a couple of days upwards depending on the type and quantity and what else we have booked.  It is always best to call and check as we will do what we can to meet your requirements.

The opticalCON LITE assembly is not designed to be used as a deployable cable, but as a DUO and QUAD compatible patch cable.  We do not supply these on reels or recommend these are used in this way. If you are looking for a deployable cable, we would suggest the opticalCON Advanced DUO, QUAD or MTP series as a more suitable range.

Although the opticalCON DUO and QUAD connectors are LC based, they cannot be plugged directly into standard LC sockets.  You will need to transition from a chassis connector, the rear of which take LC’s, then patch to your equipment.

Mainland UK
Next working day delivery is offered as standard Monday-Friday for goods that are pre-made, are in stock and are not custom made. This service is only available for shipments to the UK Mainland, excluding the Scottish Highlands. If a quick delivery is important to you, you wish to check a manufacturing time for a custom made item or are placing an order after 3pm, please call the office on 01488 685800; we can confirm the stock availability and dispatch date very promptly.

International (Non-Mainland UK)
If your delivery location falls outside of the Mainland UK (i.e. International or Non-Mainland UK), after placing an order on the website, Universal Networks will contact you via e-mail or telephone to confirm the total cost of the order including delivery to your desired destination. We will then require your Credit or Debit Card details to process an offline payment.

To read more information, please visit our Delivery FAQ or Delivery Information pages.



1Cable Retention>250N
2Insertion ForceDUO/QUAD/MTP12: < 35N, MTP24: < 45N
3Withdrawal ForceDUO/QUAD/MTP12: < 35N, MTP24: < 45N
4LifetimeDUO/QUAD/MTP12: 2500 mating cycles MTP24: 1500 mating cycles
8Locking DevicePush-Pull
9Temperature Range-40 °C to +70 °C


1BootRubber (EPDM)


1ColourBlack, matt
2Core diameterSingle Mode 9 µm, Multimode 50 µm
3Cladding diameter125 µm PUR
4Min. bending radiusDUO: 3cm, QUAD/MTP: 3.5cm
5Cable retentionAramid yarn
12WeightDUO: 3mm, QUAD/MTP: 3.5 mm
13Overall diameterDUO: 9kg/km, QUAD: 14kg/km, MTP: 12.6 kg/km


1Insertion loss< 0.45 dB
2Optical return loss> 50 dB (PC), > 60 dB (APC)
5Optical wiringISO / IEC 11801
6Optical connectorDUO: LC-Duplex (PC and APC), QUAD: 1.25 mm ceramic ferrule (PC and APC), MTP12: USCONEC Elite female (PC and APC)
