Name: NO24FDW-A Neutrik opticalCON MTP24 Chassis Connector
SKU: NO24FDW-A
Price: 100.00 GBP
Availability: InStock

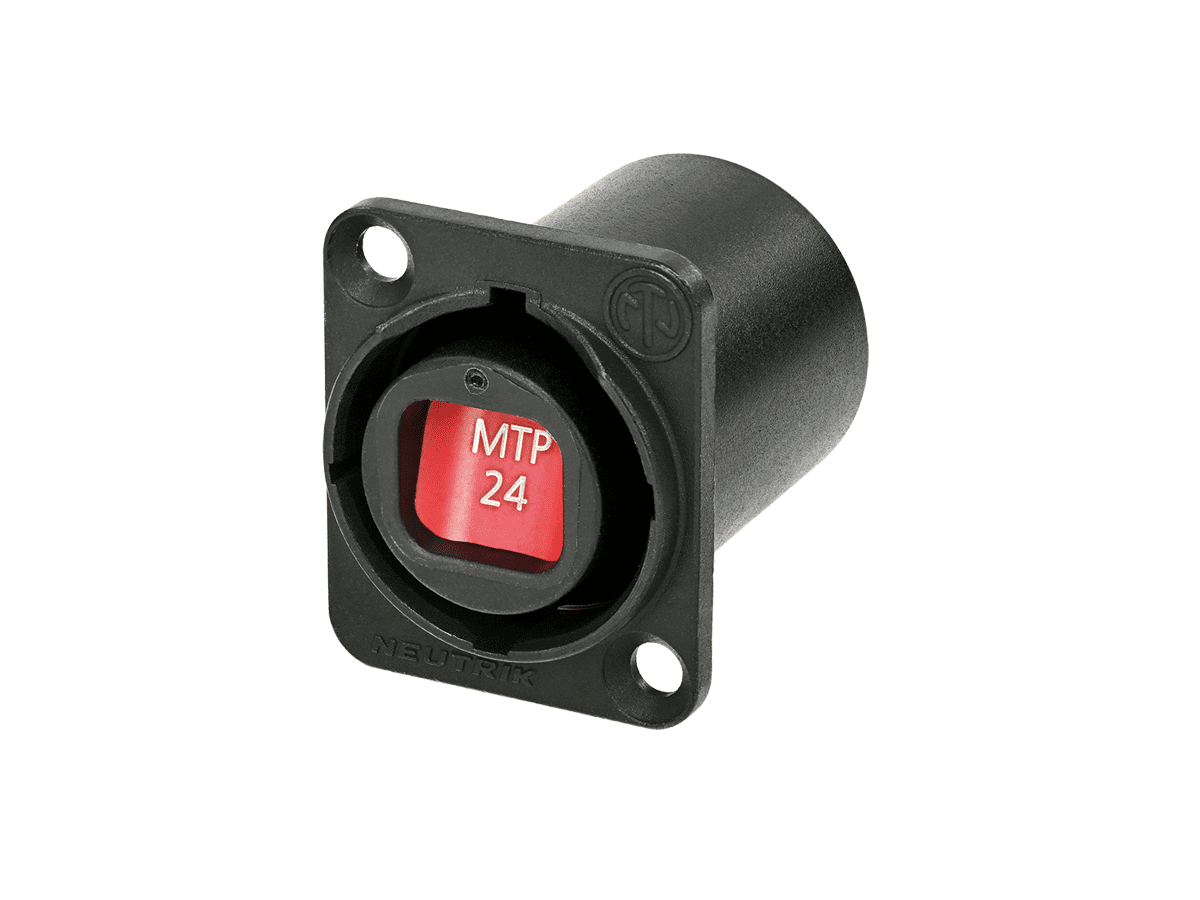

NO24FDW-A Neutrik opticalCON MTP24 Chassis Connector

The Neutrik NO24FDW-A opticalCON MTP® 24 chassis connector offers ultra high-density, professional-grade fibre connectivity in a rugged D-size housing. Supporting 24 fibres through a standard MTP® interface, it features a sealing shutter, push-pull locking, and IP65-rated protection — ideal for demanding broadcast, live event, and data infrastructure applications.

Available in the following formats:

£100.00 (Excl. VAT)

£120.00 (Incl. VAT)

NO24FDW-A Neutrik opticalCON MTP24 Chassis Connector

The NO24FDW-A is the highest-capacity chassis connector in Neutrik’s opticalCON MTP® range, designed to support 24 fibre channels through a single MTP® interface. This makes it the ideal choice for high-bandwidth environments where space efficiency and long-term performance are critical.

Compatible with standard MTP® breakout cables on the rear, the NO24FDW-A integrates easily into fibre patch panels, mobile production systems, or permanent installations. Housed in a durable black D-size shell, it includes an automatic sealing shutter that protects the optical interface from dust and debris when unmated.

Rated to IP65 when mated, this connector ensures dependable performance in both indoor and outdoor settings. The push-pull locking mechanism makes installation fast and secure, while its support for singlemode and multimode configurations ensures flexibility across a range of system designs.

Engineered for high-density fibre routing with minimal maintenance, the NO24FDW-A offers the trusted quality and reliability of Neutrik’s opticalCON platform — built for professional environments where performance matters.

FEATURES

The Neutrik range provides a range of benefits that make this option well suited for harsh environments and industries requiring temporary data connectivity.

COLOUR CODED SEALS

To help identify fibre type. Black (multimode), green (singlemode PC), blue (singlemode APC)

SEALING SHUTTER

Designed as feedthrough with automatic sealing shutter to protect from dust and dirt

IP65 RATED

Dirt, dust and water protection to IP65 in mated condition

SIMPLE CONNECTIVITY

Can use standard duplex LC/MTP/MPO fanout cable on the front and rear for cost effective, simple connectivity

Neutrik opticalCON Chassis Connectors

Compare our range of Neutrik opticalCON chassis connectors – including NO2-4FDW-A, NO4FDW-A, NO12FDW-A, NO24FDW-A – to find the best fit for your project.


Product Code	NO2-4FDW-A	NO4FDW-A	NO12FDW-A	NO24FDW-A
Connectors	DUO	QUAD	MTP	MTP
Fibre Count	2 Fibre	4 Fibre	12 Fibre	24 Fibre

Q & A

Can I plug a standard LC patch cable into an opticalCON DUO or QUAD chassis connector?

The rear of these chassis connectors are presented as LC, therefore you can plug in standard LC’s. However with the opticalCON QUAD chassis connector, you must remove the clips and ensure the LC connector is slim to avoid adjacent connectors splaying.
