When it comes to copper cabling, choosing the level of shielding you want the cable to have can prove a minefield of confusing acronyms and perplexing industry technology. We’ve put together this handy guide to help you understand the meaning of some of the most common terms.

The shielding inside your cable acts as a barrier to protect the cable from electromagnetic interference (EMI), radio frequency interference (RFI) and crosstalk between pairs and adjacent cables. It also prevents the signal from the cable interfering with surrounding equipment. The various levels of shielding offer a range of different advantages suitable for a number of applications.

U/UTP: UNSHIELDED TWISTED PAIRS

Also known as UTP, this is currently the most common and basic method of cable construction, consisting of pairs of wires twisted together. There is no shielding, instead the symmetrical twist in the wires create a balanced transmission line, helping to reduce electrical noise and EMI. In addition, the different twist rates of each pair can be used to reduce crosstalk. In higher category cables, a cross-web filler may be found separating the individual pairs to help reduce alien crosstalk from adjacent cables.

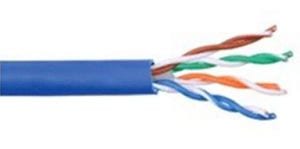

U/UTP Cable

F/UTP: FOILED WITH UNSHIELDED TWISTED PAIRS.

Often referred to as FTP, this type of cable features an overall foil shield wrapped around unshielded twisted pairs and a drain wire. When the drain wire is correctly connected, unwanted noise is redirected to ground, offering extra protection against EMI/RFI.

F/UTP Cable

S/UTP: SHIELDED WITH UNSHIELDED TWISTED PAIRS.

This cable construction has an overall braid screen with unshielded twisted pairs. This cable is often referred to as an STP, however this term should be used with caution due to other shielded cables also using this term. Always check whether the cable will have any shielding and whether individual pairs have their own shield. The cable is capable of supporting higher transmission rates across longer distances than U/UTP and provides better mechanical strength and grounding due to the braid.

S/UTP Cable

SF/UTP: SHIELDED AND FOILED WITH UNSHIELDED TWISTED PAIRS.

This cable has both an overall braid shield and foil shield with unshielded twisted pairs. This cable offers effective protection from EMI both from the cable and into the cable as well as much better grounding due to the additional braid.

SF/UTP Copper Cable

U/FTP: UNSHIELDED WITH FOILED TWISTED PAIRS

This type of cable has no overall shielding but the individual twisted pairs are wrapped in a foil screen, offering some protection from EMI and crosstalk from adjacent pairs and other cables.

U/FTP Cable

F/FTP: FOILED WITH FOILED TWISTED PAIRS

This type of cable features an overall foil shield with individually foil tape shielded twisted pairs. These are similar to F/UTP cables, with the addition of a foil shield around each twisted pair. The cable construction is designed to provide the assembly with greater protection from crosstalk from adjacent pairs and other cables, RFI and EMI.

F/FTP Copper Cable

S/FTP: SHIELDED WITH FOILED TWISTED PAIRS

Similar to F/FTP, the individual twisted pairs are wrapped in a foil tape before being wrapped in an overall flexible yet mechanically strong braid screen. The additional foil on the twisted pairs helps to reduce crosstalk from adjacent pairs and other cables. The braid provides better grounding.

S/FTP Cable

SF/FTP: SHIELDED AND FOILED WITH FOILED TWISTED PAIRS

Offering the maximum protection from RFI/EMI, crosstalk and alien crosstalk, this cable has both an overall braid shield and foil shield, with individually foil tape screened twisted pairs. This type of cable provides the best level of protection from interference and better grounding due to the braid.

SF/FTP Cable
 Common Industry Acronyms ISO/IEC11801 Name Cable Shielding Type Twisted Pair Shielding Type Example
 UTP U/UTP None NoneU/UTP Cable
 FTP, STP, ScTP F/UTP Foil NoneF/UTP Cable
 STP, ScTP S/UTP Braiding NoneS/UTP Cable
 SFTP, S-FTP, STP SF/UTP Braiding & foil NoneSF/UTP Copper Cable
 STP, ScTP, PiMF U/FTP None FoilU/FTP Cable
 FFTP F/FTP Foil FoilF/FTP Copper Cable
 SSTP, SFTP, STP, PiMF S/FTP Braiding FoilS/FTP Cable
 SSTP, SFTP SF/FTP Braiding & foil FoilSF/FTP Cable

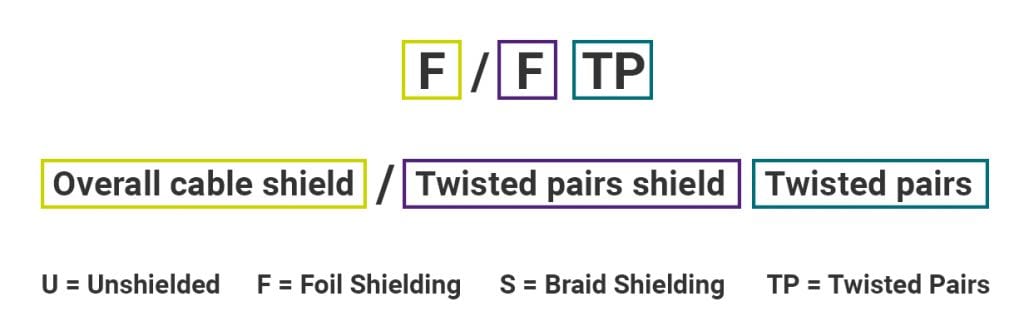

THE ACRONYM STRUCTURE DISASSEMBLED

FTP Diagram

WE’RE HERE TO HELP

We hope this handy guide provides you with all the information you might need to help you make the decision on which cable shielding you need. However, we know that it can be a daunting prospect, so we’re always here to offer friendly advice and guidance. If you have any questions then please do not hesitate to contact us on 01488 685800 or email us.

Cat5eCat6 and Cat6a are available in unshielded and shielded formats, Cat7 is only available as a shielded cable.
