Name: Neutrik opticalCON QUAD
SKU: NKO4
Availability: InStock

Neutrik opticalCON^® ADVANCED QUAD NKO4

Following on the success of opticalCON ADVANCED DUO, the opticalCON^® ADVANCED QUAD series, also an LC-based connector system, doubles the fibre count to offer a rugged point-to-point connection.

The opticalCON QUAD cable connector accommodates four PC/APC optical channels, based on conventional and proven LC connectivity, protected by a ruggedised and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover.

The opticalCON QUAD TRIPLE SPLIT cable is a multi-channel cable solution featuring three opticalCON QUAD connectors. The 12 core (3 x 4 core QUAD connectors) military approved cable offers a robust yet lightweight solution and is available on a deployable reel in custom lengths up to 300m.

Singlemode (PC, APC) or multimode

Cable spec: Advanced, Armoured or X-Treme

QUAD: 4 fibre, QUAD Triple Split: 12 fibre (3x 4 fibre)

Custom lengths also available – please contact us to discuss

FEATURES

The Neutrik range provides a range of benefits that make this option well suited for harsh environments and industries requiring temporary data connectivity.

PORTABLE REEL

Includes portable, deployable reel.*

SEALING SHUTTER

Automatic sealing shutter with silicone gasket for low maintenance.

CABLE RETENTION

All-metal housing and heavy duty cable retention.

IP65 RATED

Dirt, dust and water protection to IP65 in mated condition.

RELIABLE LOCKING

Reliable Push-Pull locking mechanism.

EASY CLEAN

Easy to clean, no special tools required.

RUGGED

Suitable for demanding applications such as touring, broadcast & rental.

*Or coiled, depending on packaging option selected during configuration above.

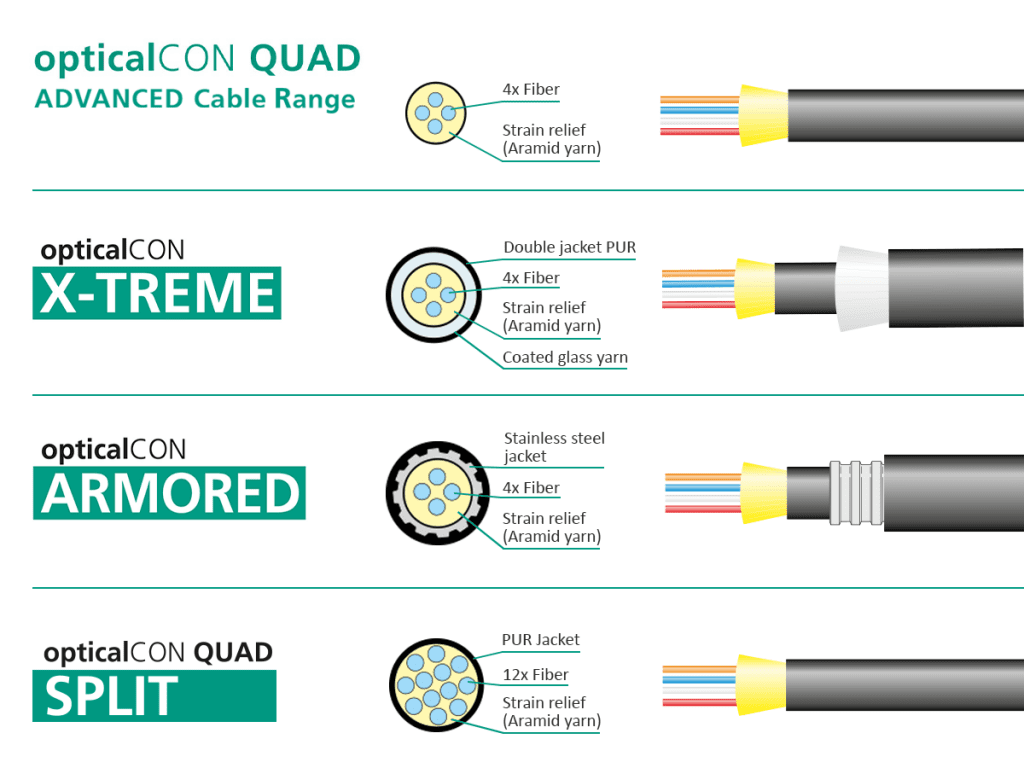

CABLE TYPES

opticalCON QUAD Standard – NKO4M4/ NKO4M/ NKO4S/ NKO4SA

Compact (5.8mm) opticalCON QUAD Standard, rugged and lightweight, 4 core deployable field cable with excellent cable retention due to aramid yarn and black PUR outer jacket. 5.8mm diameter

opticalCON QUAD Advanced Options

Search:

Product Code	Mode	Cable Type	Packaging	Length
1	NKO4M4-A-2-50	Multimode OM4	QUAD	GT310	50m
2	NKO4M4-A-2-100	Multimode OM4	QUAD	GT310	100m
3	NKO4M4-A-2-150	Multimode OM4	QUAD	GT310	150m
4	NKO4M4-A-3-200	Multimode OM4	QUAD	GT380	200m
5	NKO4M4-A-3-250	Multimode OM4	QUAD	GT380	250m
6	NKO4M4-A-3-300	Multimode OM4	QUAD	GT380	300m
7	NKO4M4-A-5-400	Multimode OM4	QUAD	GT450	400m
8	NKO4M4-A-4-500	Multimode OM4	QUAD	HT582	500m
9	NKO4M4-A-4-600	Multimode OM4	QUAD	HT582	600m
10	NKO4M4-A-4-700	Multimode OM4	QUAD	HT582	700m
11	NKO4M4-A-4-800	Multimode OM4	QUAD	HT582	800m
12	NKO4M4-A-6-900	Multimode OM4	QUAD	SK4812	900m
13	NKO4M4-A-6-1000	Multimode OM4	QUAD	SK4812	1000m
14	NKO4M-A-0-50	Multimode OM3	QUAD	Coiled	50m
15	NKO4M-A-0-100	Multimode OM3	QUAD	Coiled	100m
16	NKO4M-A-0-150	Multimode OM3	QUAD	Coiled	150m
17	NKO4M-A-0-200	Multimode OM3	QUAD	Coiled	200m
18	NKO4M-A-0-250	Multimode OM3	QUAD	Coiled	250m
19	NKO4M-A-0-300	Multimode OM3	QUAD	Coiled	300m
20	NKO4M-A-0-400	Multimode OM3	QUAD	Coiled	400m
21	NKO4M-A-0-500	Multimode OM3	QUAD	Coiled	500m
22	NKO4M-A-0-600	Multimode OM3	QUAD	Coiled	600m
23	NKO4M-A-0-700	Multimode OM3	QUAD	Coiled	700m
24	NKO4M-A-0-800	Multimode OM3	QUAD	Coiled	800m
25	NKO4M-A-0-900	Multimode OM3	QUAD	Coiled	900m
26	NKO4M-A-0-1000	Multimode OM3	QUAD	Coiled	1000m
27	NKO4M-A-2-50	Multimode OM3	QUAD	GT310	50m
28	NKO4M-A-2-100	Multimode OM3	QUAD	GT310	100m
29	NKO4M-A-2-150	Multimode OM3	QUAD	GT310	150m
30	NKO4M-A-3-200	Multimode OM3	QUAD	GT380	200m
31	NKO4M-A-3-250	Multimode OM3	QUAD	GT380	250m
32	NKO4M-A-3-300	Multimode OM3	QUAD	GT380	300m
33	NKO4M-A-5-400	Multimode OM3	QUAD	GT450	400m
34	NKO4M-A-4-500	Multimode OM3	QUAD	HT582	500m
35	NKO4M-A-4-600	Multimode OM3	QUAD	HT582	600m
36	NKO4M-A-4-700	Multimode OM3	QUAD	HT582	700m
37	NKO4M-A-4-800	Multimode OM3	QUAD	HT582	800m
38	NKO4M-A-6-900	Multimode OM3	QUAD	SK4812	900m
39	NKO4M-A-6-1000	Multimode OM3	QUAD	SK4812	1000m
40	NKO4S-A-0-50	Singlemode	QUAD	Coiled	50m
41	NKO4S-A-0-100	Singlemode	QUAD	Coiled	100m
42	NKO4S-A-0-150	Singlemode	QUAD	Coiled	150m
43	NKO4S-A-0-200	Singlemode	QUAD	Coiled	200m
44	NKO4S-A-0-250	Singlemode	QUAD	Coiled	250m
45	NKO4S-A-0-300	Singlemode	QUAD	Coiled	300m
46	NKO4S-A-0-400	Singlemode	QUAD	Coiled	400m
47	NKO4S-A-0-500	Singlemode	QUAD	Coiled	500m
48	NKO4S-A-0-600	Singlemode	QUAD	Coiled	600m
49	NKO4S-A-0-700	Singlemode	QUAD	Coiled	700m
50	NKO4S-A-0-800	Singlemode	QUAD	Coiled	800m
51	NKO4S-A-0-900	Singlemode	QUAD	Coiled	900m
52	NKO4S-A-0-1000	Singlemode	QUAD	Coiled	1000m
53	NKO4S-A-2-50	Singlemode	QUAD	GT310	50m
54	NKO4S-A-2-100	Singlemode	QUAD	GT310	100m
55	NKO4S-A-2-150	Singlemode	QUAD	GT310	150m
56	NKO4S-A-3-200	Singlemode	QUAD	GT380	200m
57	NKO4S-A-3-250	Singlemode	QUAD	GT380	250m
58	NKO4S-A-3-300	Singlemode	QUAD	GT380	300m
59	NKO4S-A-5-400	Singlemode	QUAD	GT450	400m
60	NKO4S-A-4-500	Singlemode	QUAD	HT582	500m
61	NKO4S-A-4-600	Singlemode	QUAD	HT582	600m
62	NKO4S-A-4-700	Singlemode	QUAD	HT582	700m
63	NKO4S-A-4-800	Singlemode	QUAD	HT582	800m
64	NKO4S-A-6-900	Singlemode	QUAD	SK4812	900m
65	NKO4S-A-6-1000	Singlemode	QUAD	SK4812	1000m
66	NKO4SA-A-0-50	Singlemode APC	QUAD	Coiled	50m
67	NKO4SA-A-0-100	Singlemode APC	QUAD	Coiled	100m
68	NKO4SA-A-0-150	Singlemode APC	QUAD	Coiled	150m
69	NKO4SA-A-0-200	Singlemode APC	QUAD	Coiled	200m
70	NKO4SA-A-0-250	Singlemode APC	QUAD	Coiled	250m
71	NKO4SA-A-0-300	Singlemode APC	QUAD	Coiled	300m
72	NKO4SA-A-0-400	Singlemode APC	QUAD	Coiled	400m
73	NKO4SA-A-0-500	Singlemode APC	QUAD	Coiled	500m
74	NKO4SA-A-0-600	Singlemode APC	QUAD	Coiled	600m
75	NKO4SA-A-0-700	Singlemode APC	QUAD	Coiled	700m
76	NKO4SA-A-0-800	Singlemode APC	QUAD	Coiled	800m
77	NKO4SA-A-0-900	Singlemode APC	QUAD	Coiled	900m
78	NKO4SA-A-0-1000	Singlemode APC	QUAD	Coiled	1000m
79	NKO4SA-A-0-1100	Singlemode APC	QUAD	Coiled	1100m
80	NKO4SA-A-0-1200	Singlemode APC	QUAD	Coiled	1200m
81	NKO4SA-A-0-1300	Singlemode APC	QUAD	Coiled	1300m
82	NKO4SA-A-0-1400	Singlemode APC	QUAD	Coiled	1400m
83	NKO4SA-A-2-50	Singlemode APC	QUAD	GT310	50m
84	NKO4SA-A-2-100	Singlemode APC	QUAD	GT310	100m
85	NKO4SA-A-2-150	Singlemode APC	QUAD	GT310	150m
86	NKO4SA-A-3-200	Singlemode APC	QUAD	GT380	200m
87	NKO4SA-A-3-250	Singlemode APC	QUAD	GT380	250m
88	NKO4SA-A-3-300	Singlemode APC	QUAD	GT380	300m
89	NKO4SA-A-5-400	Singlemode APC	QUAD	GT450	400m
90	NKO4SA-A-4-500	Singlemode APC	QUAD	HT582	500m
91	NKO4SA-A-4-600	Singlemode APC	QUAD	HT582	600m
92	NKO4SA-A-4-700	Singlemode APC	QUAD	HT582	700m
93	NKO4SA-A-4-800	Singlemode APC	QUAD	HT582	800m
94	NKO4SA-A-6-900	Singlemode APC	QUAD	SK4812	900m
95	NKO4SA-A-6-1000	Singlemode APC	QUAD	SK4812	1000m

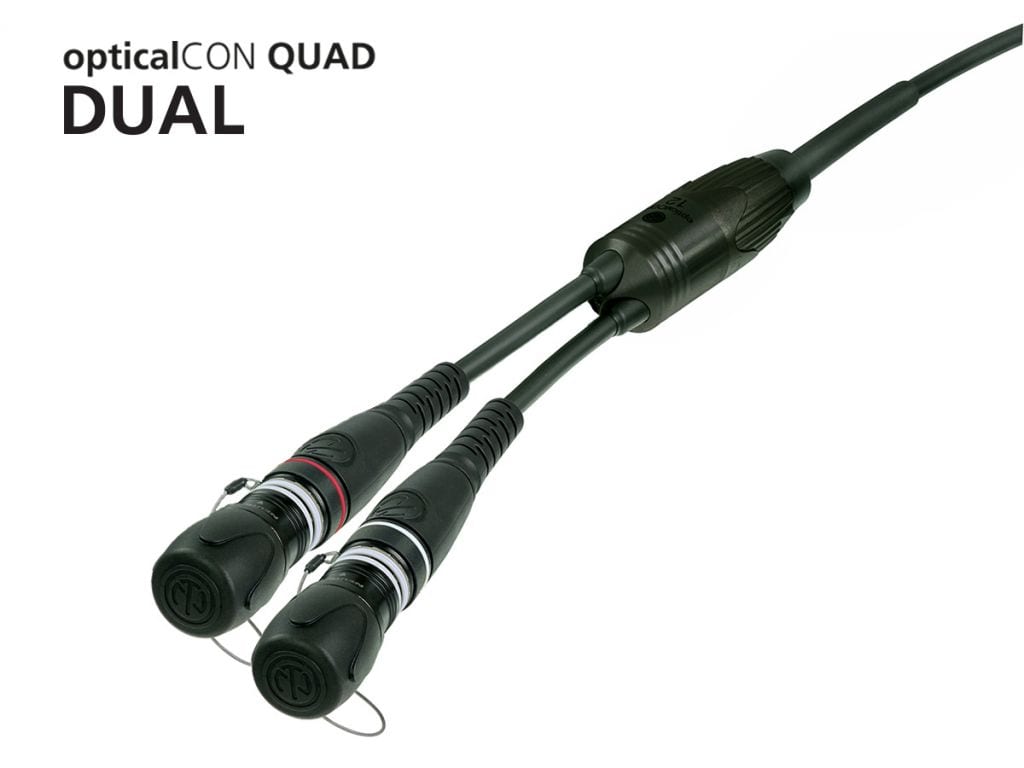

opticalCON QUAD Dual – NKOYS-11-A/ NKOYM-11-A

Compact opticalCON QUAD Dual, rugged and lightweight, 8 core deployable field cable with excellent cable retention due to aramid yarn and black PUR outer jacket. 7mm diameter.

opticalCON QUAD Dual Options

Search:

Product Code	Mode	Cable Type	Packaging	Length
1	NKOYS-11-A-5-50	Singlemode	QUAD Dual	GT450	50m
2	NKOYS-11-A-5-100	Singlemode	QUAD Dual	GT450	100m
3	NKOYS-11-A-5-150	Singlemode	QUAD Dual	GT450	150m
4	NKOYS-11-A-5-200	Singlemode	QUAD Dual	GT450	200m
5	NKOYS-11-A-4-250	Singlemode	QUAD Dual	HT582	250m
6	NKOYS-11-A-4-300	Singlemode	QUAD Dual	HT582	300m
7	NKOYS-11-A-6-350	Singlemode	QUAD Dual	SK4812	350m
8	NKOYS-11-A-6-400	Singlemode	QUAD Dual	SK4812	400m
9	NKOYS-11-A-6-500	Singlemode	QUAD Dual	SK4812	500m
10	NKOYM-11-A-5-50	Multimode	QUAD Dual	GT450	50m
11	NKOYM-11-A-5-100	Multimode	QUAD Dual	GT450	100m
12	NKOYM-11-A-5-150	Multimode	QUAD Dual	GT450	150m
13	NKOYM-11-A-5-200	Multimode	QUAD Dual	GT450	200m
14	NKOYM-11-A-4-250	Multimode	QUAD Dual	HT582	250m
15	NKOYM-11-A-4-300	Multimode	QUAD Dual	HT582	300m
16	NKOYM-11-A-6-350	Multimode	QUAD Dual	SK4812	350m
17	NKOYM-11-A-6-400	Multimode	QUAD Dual	SK4812	400m
18	NKOYM-11-A-6-500	Multimode	QUAD Dual	SK4812	500m

opticalCON QUAD X-TREME – NKOX4M-A/ NKOX4S-A/ NKOX4SA-A

opticalCON QUAD X-TREME 4 core cable offering a cut-proof and rodent resistant, double jacket, glass yarn armoured cable construction with excellent cable retention due to aramid yarn and black PUR outer jacket. 9.2mm diameter.

opticalCON QUAD X-Treme Options

Search:

Product Code	Mode	Cable Type	Packaging	Length
1	NKOX4M-A-0-50	Multimode	QUAD X-Treme	Coiled	50m
2	NKOX4M-A-0-100	Multimode	QUAD X-Treme	Coiled	100m
3	NKOX4M-A-0-150	Multimode	QUAD X-Treme	Coiled	150m
4	NKOX4M-A-0-200	Multimode	QUAD X-Treme	Coiled	200m
5	NKOX4M-A-0-250	Multimode	QUAD X-Treme	Coiled	250m
6	NKOX4M-A-0-300	Multimode	QUAD X-Treme	Coiled	300m
7	NKOX4M-A-0-400	Multimode	QUAD X-Treme	Coiled	400m
8	NKOX4M-A-3-50	Multimode	QUAD X-Treme	GT380	50m
9	NKOX4M-A-3-100	Multimode	QUAD X-Treme	GT380	100m
10	NKOX4M-A-4-150	Multimode	QUAD X-Treme	HT582	150m
11	NKOX4M-A-3-200	Multimode	QUAD X-Treme	GT380	200m
12	NKOX4M-A-4-250	Multimode	QUAD X-Treme	HT582	250m
13	NKOX4M-A-4-300	Multimode	QUAD X-Treme	HT582	300m
14	NKOX4M-A-6-400	Multimode	QUAD X-Treme	SK4812	400m
15	NKOX4S-A-0-50	Singlemode	QUAD X-Treme	Coiled	50m
16	NKOX4S-A-0-100	Singlemode	QUAD X-Treme	Coiled	100m
17	NKOX4S-A-0-150	Singlemode	QUAD X-Treme	Coiled	150m
18	NKOX4S-A-0-200	Singlemode	QUAD X-Treme	Coiled	200m
19	NKOX4S-A-0-250	Singlemode	QUAD X-Treme	Coiled	250m
20	NKOX4S-A-0-300	Singlemode	QUAD X-Treme	Coiled	300m
21	NKOX4S-A-0-400	Singlemode	QUAD X-Treme	Coiled	400m
22	NKOX4S-A-3-50	Singlemode	QUAD X-Treme	GT380	50m
23	NKOX4S-A-3-100	Singlemode	QUAD X-Treme	GT380	100m
24	NKOX4S-A-4-150	Singlemode	QUAD X-Treme	HT582	150m
25	NKOX4S-A-3-200	Singlemode	QUAD X-Treme	GT380	200m
26	NKOX4S-A-4-250	Singlemode	QUAD X-Treme	HT582	250m
27	NKOX4S-A-4-300	Singlemode	QUAD X-Treme	HT582	300m
28	NKOX4S-A-6-400	Singlemode	QUAD X-Treme	SK4812	400m
29	NKOX4SA-A-0-50	Singlemode APC	QUAD X-Treme	Coiled	50m
30	NKOX4SA-A-0-100	Singlemode APC	QUAD X-Treme	Coiled	100m
31	NKOX4SA-A-0-150	Singlemode APC	QUAD X-Treme	Coiled	150m
32	NKOX4SA-A-0-200	Singlemode APC	QUAD X-Treme	Coiled	200m
33	NKOX4SA-A-0-250	Singlemode APC	QUAD X-Treme	Coiled	250m
34	NKOX4SA-A-0-300	Singlemode APC	QUAD X-Treme	Coiled	300m
35	NKOX4SA-A-0-400	Singlemode APC	QUAD X-Treme	Coiled	400m
36	NKOX4SA-A-0-500	Singlemode APC	QUAD X-Treme	Coiled	500m
37	NKOX4SA-A-0-600	Singlemode APC	QUAD X-Treme	Coiled	600m
38	NKOX4SA-A-0-700	Singlemode APC	QUAD X-Treme	Coiled	700m
39	NKOX4SA-A-0-800	Singlemode APC	QUAD X-Treme	Coiled	800m
40	NKOX4SA-A-0-900	Singlemode APC	QUAD X-Treme	Coiled	900m
41	NKOX4SA-A-0-1000	Singlemode APC	QUAD X-Treme	Coiled	1000m
42	NKOX4SA-A-0-1100	Singlemode APC	QUAD X-Treme	Coiled	1100m
43	NKOX4SA-A-0-1200	Singlemode APC	QUAD X-Treme	Coiled	1200m
44	NKOX4SA-A-0-1300	Singlemode APC	QUAD X-Treme	Coiled	1300m
45	NKOX4SA-A-0-1400	Singlemode APC	QUAD X-Treme	Coiled	1400m
46	NKOX4SA-A-3-50	Singlemode APC	QUAD X-Treme	GT380	50m
47	NKOX4SA-A-3-100	Singlemode APC	QUAD X-Treme	GT380	100m
48	NKOX4SA-A-4-200	Singlemode APC	QUAD X-Treme	HT582	200m
49	NKOX4SA-A-4-250	Singlemode APC	QUAD X-Treme	HT582	250m
50	NKOX4SA-A-4-300	Singlemode APC	QUAD X-Treme	HT582	300m
51	NKOX4SA-A-6-400	Singlemode APC	QUAD X-Treme	SK4812	400m

opticalCON QUAD ARMOURED – NKOXX4M-A/ NKOXX4S-A/ NKOXX4SA-A

Extra rugged and lightweight opticalCON QUAD ARMOURED cable offering a cut-proof and rodent resistant, double jacket, glass yarn armoured cable construction. Stainless steel jacket absorbs lateral forces up to 200 kg/cm2. Ultra flexible due to the special spring shape construction. 10.5mm diameter.

opticalCON QUAD Armoured Options

Product Code	Mode	Cable Type	Packaging	Length
1	NKOXX4M-A-3-50	Multimode	QUAD Armoured	GT380	50m
2	NKOXX4M-A-5-100	Multimode	QUAD Armoured	GT450	100m
3	NKOXX4S-A-3-50	Singlemode	QUAD Armoured	GT380	50m
4	NKOXX4S-A-5-100	Singlemode	QUAD Armoured	GT450	100m
5	NKOXX4SA-A-0-50	Singlemode APC	QUAD Armoured	Coiled	50m
6	NKOXX4SA-A-0-100	Singlemode APC	QUAD Armoured	Coiled	100m
7	NKOXX4SA-A-3-50	Singlemode APC	QUAD Armoured	GT380	50m
8	NKOXX4SA-A-5-100	Singlemode APC	QUAD Armoured	GT450	100m

opticalCON QUAD TRIPLE SPLIT – NKOYS-A/ NKOYM-A

Rugged and lightweight 12-channel opticalCON QUAD TRIPLE SPLIT (3 x 4-fibre QUAD connectors) mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in multimode PC and singlemode APC. 10.9mm diameter.

opticalCON QUAD Triple Split Options

Search:

Product Code	Mode	Cable Type	Packaging	Length
1	NKOYS-A-5-50	Singlemode	QUAD Triple Split	GT450	50m
2	NKOYS-A-5-100	Singlemode	QUAD Triple Split	GT450	100m
3	NKOYS-A-5-150	Singlemode	QUAD Triple Split	GT450	150m
4	NKOYS-A-5-200	Singlemode	QUAD Triple Split	GT450	200m
5	NKOYS-A-4-250	Singlemode	QUAD Triple Split	HT582	250m
6	NKOYS-A-4-300	Singlemode	QUAD Triple Split	HT582	300m
7	NKOYS-A-6-400	Singlemode	QUAD Triple Split	SK4812	400m
8	NKOYS-A-6-500	Singlemode	QUAD Triple Split	SK4812	500m
9	NKOYM-A-5-50	Multimode	QUAD Triple Split	GT450	50m
10	NKOYM-A-5-100	Multimode	QUAD Triple Split	GT450	100m
11	NKOYM-A-5-150	Multimode	QUAD Triple Split	GT450	150m
12	NKOYM-A-5-200	Multimode	QUAD Triple Split	GT450	200m
13	NKOYM-A-4-250	Multimode	QUAD Triple Split	HT582	250m
14	NKOYM-A-4-300	Multimode	QUAD Triple Split	HT582	300m
15	NKOYM-A-6-400	Multimode	QUAD Triple Split	SK4812	400m
16	NKOYM-A-6-500	Multimode	QUAD Triple Split	SK4812	500m

FIBRE MODE

The chart below shows the industry standard minimum distances achieved with each fibre type. For further details please refer to our FAQ page here.

If you are unsure which fibre mode is suitable for your requirements, please give us a call on 01488 685800 and we’d be happy to help.

Fibre Mode	Type	Core / Cladding (um)	Fast Ethernet 100mb	Gigabit GbE	10Gigabit 10GbE	40Gigabit 40GbE	100Gigabit 100GbE	40G SWDM4	100G SWDM4
1	Multimode	OM3	50/125	2km	800m	300m	100m	100m	240m	75m
2	Multimode	OM4	50/125	2km	1100m	400m	150m	150m	350m	100m
3	Singlemode	OS1/OS2	9/125	40km	100km	40km	40km	40km	-	-

CABLE DIAGRAMS

REEL OPTIONS

Note: option 2 not available with ARMOURED or X-TREME

Q & A

Can you supply lengths that are not listed above?

Yes, all our cables are made to order, so we can supply in any length to meet your exact requirements. Please contact us and we will send you a formal quote.

Are you able to do repairs and servicing?

Yes, we can repair/service opticalCON DUO and QUAD cables in house, both Advanced and LITE. For opticalCON MTP we can arrange the repair or service though Neutrik.

Do you offer the option to loan or hire cables?

We have some cables in stock that are available to loan or hire. Please call us on 01488 685800 and we can check we have the products you need.

What are the lead times?

Generally these cables are made to order, so the turnaround can vary from a couple of days upwards depending on the type and quantity and what else we have booked. It is always best to call and check as we will do what we can to meet your requirements.

Can I plug the opticalCON DUO or QUAD connectors directly into an LC socket?

Although the opticalCON DUO and QUAD connectors are LC based, they cannot be plugged directly into standard LC sockets. You will need to transition from a chassis connector, the rear of which take LC’s, then patch to your equipment.

Is it possible to have sockets on the drum, rather than plug to plug?

Yes we can mount IP sockets on the centre plate, please contact us for a quotation.

Can I have different connectors on each end of my assembly. For example, IP-PRO2 Plug to LC?

Yes, we can mix and match connectors as required. With standard connectors (LC/ST/SC) we can also offer protection in a padded sock or removable tube.

Can I put this on my own drums, rather than putting on one of your deployable drums?

Yes, depending on the length, we can either coil your assembly or put it on a wooden drum, so that you can decant.

Can I have different connectors on each end of my deployable a cable? For example, ST on one end and LC at the other?

Yes, if you contact us we can provide a quotation. You can choose which connector type is required on the deploy end.

I am interested in your ArmourLux product, however I have seen that Neutrik offer an X-TREME cable option. Do you offer ArmourLux with X-TREME cable also?

We can supply ArmourLux terminated on X-TREME and other cable options not listed. Please contact us for more information.

What are my delivery options?

Mainland UK
Next working day delivery is offered as standard Monday-Friday for goods that are pre-made or in stock. Delivery times for Custom Made to Order items will vary, please call us to confirm delivery times. This service is only available for shipments to the UK Mainland, excluding the Scottish Highlands. If a quick delivery is important to you, you wish to check a manufacturing time for a custom made item or are placing an order after 3pm, please call the office on 01488 685800; we can confirm the stock availability and dispatch date very promptly.

International (Non-Mainland UK)
If your delivery location falls outside of the Mainland UK (i.e. International or Non-Mainland UK), after placing an order on the website, Universal Networks will contact you via e-mail or telephone to confirm the total cost of the order including delivery to your desired destination. We will then require your Credit or Debit Card details to process an offline payment.

Small Order Handling Charge
For orders under £100, a handling fee of £10 will be added to the basket in addition to the delivery charge.

To read more information, please visit our Delivery FAQ or Delivery Information pages.

Resources

Neutrik opticalCON Brochure

Neutrik opticalCON QUAD Handling Instructions

Neutrik opticalCON QUAD Advanced Datasheet

Neutrik opticalCON QUAD X-TREME Datasheet

Neutrik opticalCON QUAD ARMORED Datasheet

Specification

MECHANICAL SPECIFICATIONS

Specification	Values
1	Cable Retention	500N
2	Insertion Force	< 45N
3	Withdrawal Force	< 45N
4	Lifetime	>5000 mating cycles
5	Locking Device	Push-Pull
6	Temperature Range	-40 °C to +75 °C

MATERIAL SPECIFICATIONS

Specification	Values
1	Boot	Rubber (EPDM)
2	Bushing	Zinc diecast (ZnAl4Cu1)
3	Insert	Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
4	Shell	Zinc diecast (ZnAl4Cu1)
5	Shell plating	Black chromium
6	Strain relief	Brass, Ni plated

MOBILE CABLE SPECIFICATIONS

Specification	Values
1	Colour	Black/Grey Matt
2	Core diameter	Singlemode 9 µm, Multimode 50 µm
4	Cladding diameter	125 µm PUR
5	Min. bending radius	Advanced: 5.8 cm, X-TREME: 9.2cm, ARMOURED: 10.5cm
8	Number of fibres	4
9	Cable retention	Aramid yarn
10	Weight	Advanced: 31 kg/km, X-TREME: 82kg/km, ARMOURED: 231kg/km
13	Overall diameter	Advanced: 5.8 mm, X-TREME: 9.2mm, ARMOURED: 10.5mm

OPTICAL SPECIFICATIONS

Specifications	Values
1	Insertion loss	< 0.45 dB / connection
2	Optical wiring	ISO / IEC 11801

Configure Your Product
Cable Type :	QUAD QUAD Dual QUAD Triple Split QUAD X-Treme QUAD Armoured
Fibre Mode :	Multimode OM3 Multimode OM4 Singlemode Singlemode APC
Length :
Reel Options :
Reset

Neutrik opticalCON QUAD

Configure Your Product

Neutrik opticalCON® ADVANCED QUAD NKO4

FEATURES

PORTABLE REEL

SEALING SHUTTER

CABLE RETENTION

IP65 RATED

RELIABLE LOCKING

EASY CLEAN

RUGGED

CABLE TYPES

opticalCON QUAD Standard – NKO4M4/ NKO4M/ NKO4S/ NKO4SA

opticalCON QUAD Advanced Options

opticalCON QUAD Dual – NKOYS-11-A/ NKOYM-11-A

opticalCON QUAD Dual Options

opticalCON QUAD X-TREME – NKOX4M-A/ NKOX4S-A/ NKOX4SA-A

opticalCON QUAD X-Treme Options

opticalCON QUAD ARMOURED – NKOXX4M-A/ NKOXX4S-A/ NKOXX4SA-A

opticalCON QUAD Armoured Options

opticalCON QUAD TRIPLE SPLIT – NKOYS-A/ NKOYM-A

opticalCON QUAD Triple Split Options

FIBRE MODE

CABLE DIAGRAMS

REEL OPTIONS

Q & A

Resources

Specification

You may also like…

Neutrik opticalCON Chassis Connectors

Looking For A Bespoke Solution To Suit You?

Neutrik opticalCON^® ADVANCED QUAD NKO4
