Name: Neutrik opticalCON IP65 Coupler
SKU: NAOXX-XXX
Availability: InStock

Neutrik opticalCON IP65 Coupler

The Neutrik opticalCON weatherproof fibre coupler is a rugged, IP65-rated in-line adapter for extending DUO, QUAD, or MTP fibre cables in professional AV, broadcast, touring, and rental environments.

£285.00 – £882.00 (Excl. VAT)

£342.00 (Incl. VAT)

Neutrik opticalCON^® IP65 Fibre Coupler

The Neutrik opticalCON ADVANCED Weatherproof Fibre Coupler is a rugged, high-performance, IP65-rated in-line adapter designed for extending opticalCON DUO, QUAD, or MTP fibre optic cables. It enables reliable audio, data, or camera connections in professional environments such as studio floors, touring rigs and outside broadcasts.

Available with singlemode or multimode fibres, and in both PC and APC styles, this system offers the flexibility and performance required for a wide range of broadcast, live event, and high-end AV applications.

Singlemode PC/APC or Multimode PC

IP65 rated (when mated)

Compatible with opticalCON DUO, QUAD, MTP

FEATURES

The Neutrik range provides a range of benefits that make this option well suited for all environments and industries requiring temporary data connectivity.

SEALING SHUTTER

The automatic sealing shutter with a silicone gasket protects fibre end faces and reduces maintenance requirements.

IP65 RATED

Offers protection against dirt, dust, and water to IP65 standard when mated, ensuring reliable performance in all environments

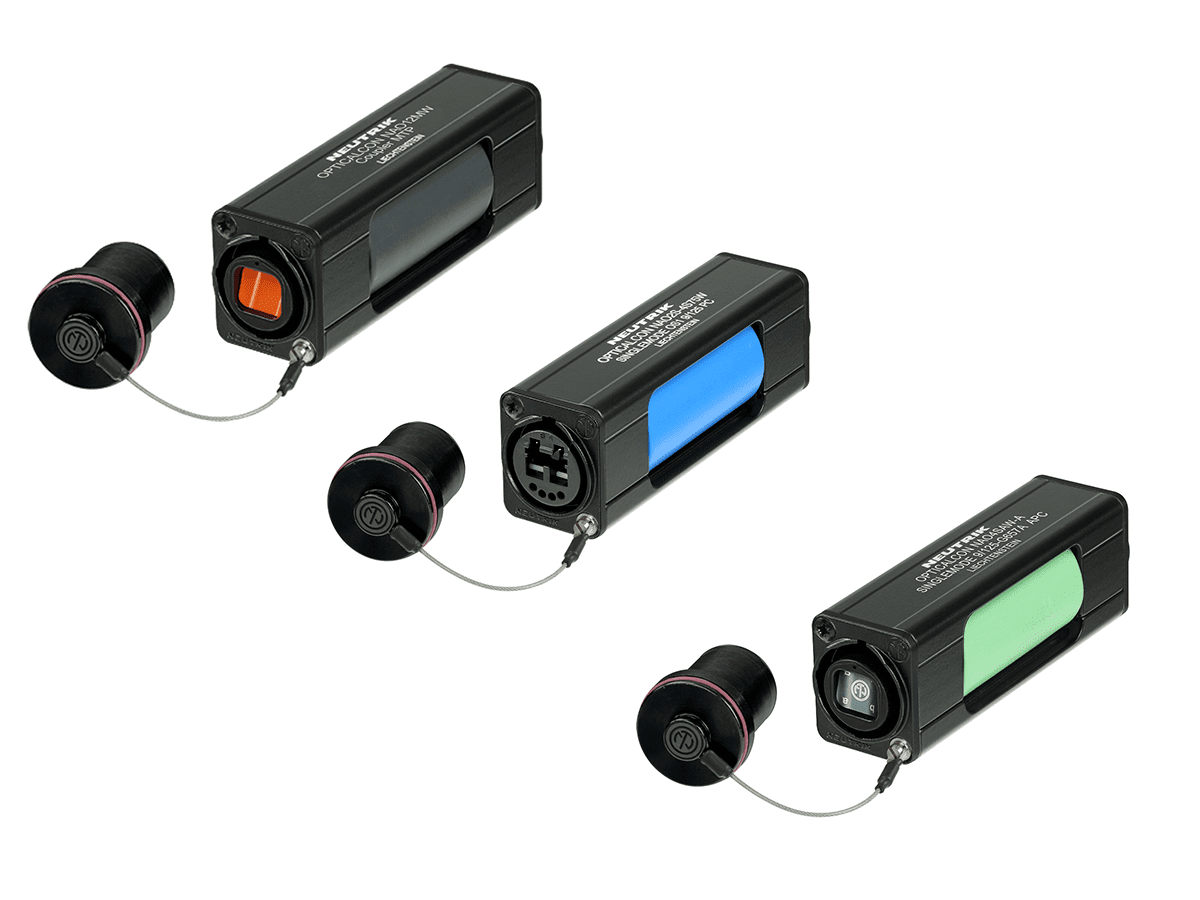

COLOURED INSERTS

Coloured inserts help identify fibre types easily: blue for singlemode PC, green for singlemode APC, and black for multimode.

Neutrik opticalCON Weatherproof Couplers

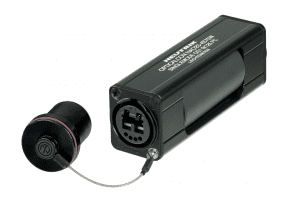

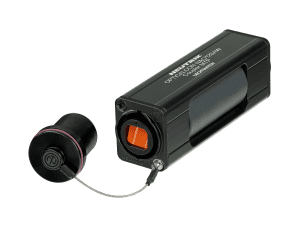

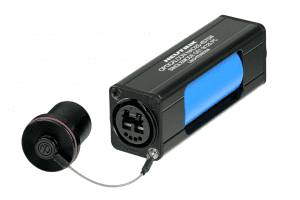

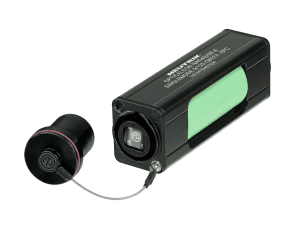

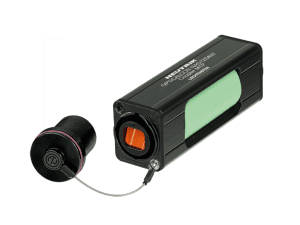

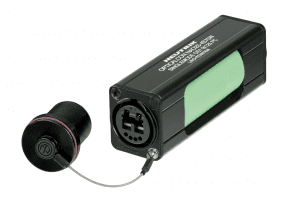

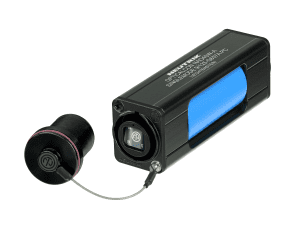

Connectors	DUO	DUO	DUO	QUAD	QUAD	QUAD	MTP12	MTP12	MTP24	MTP24
Product Code	NAO2M-H1W-A	NAO2S-H1W-A	NAO2SA-H1W-A	NAO4MW-A	NAO4SW-A	NAO4SAW-A	NAO12MW-A	NAO12SAW-A	NAO24MW-A	NAO24SAW-A
Fibre Mode	multi-mode PC	single-mode PC	single-mode APC	multi-mode PC	single-mode PC	single-mode APC	multi-mode PC	single-mode APC	multi-mode PC	single-mode APC
Color Coding	Black	Blue	Green	Black	Blue	Green	Black	Green	Black	Green
