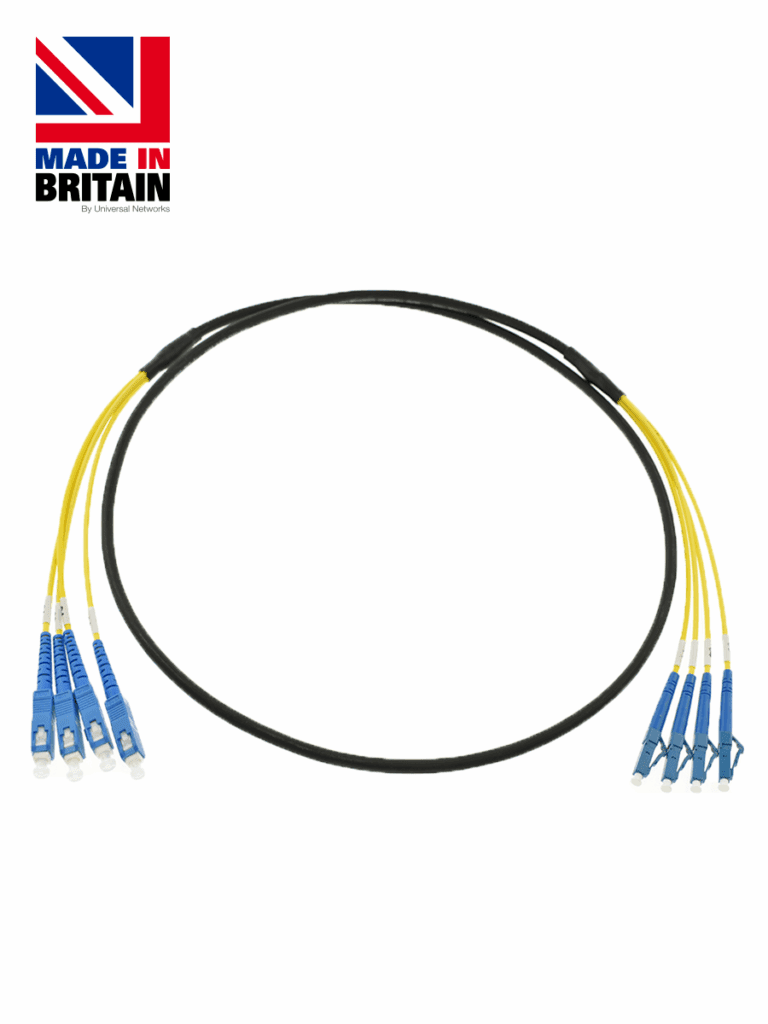

Tactical Fibre Patch Cables
Made with a specially designed cable which offers superior protection to the fibres within, maintaining flexibility whilst allowing it to bend repeatedly without damage or performance being affected. For applications that require a durable, reliable connection.

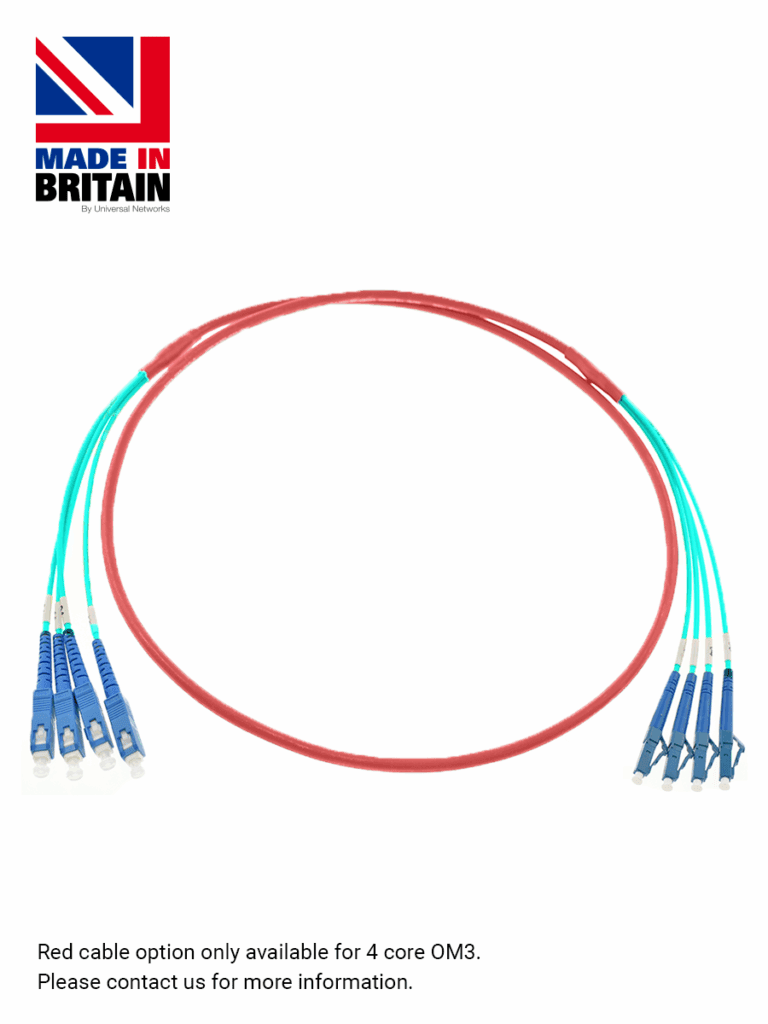

A tough cable – using a bend-insensitive Belden tactical round fibre cable with a PUR sheath, perfect for outdoor or harsh environments. It’s the same cable we use for our ArmourLux deployable assemblies. Available using a red cable for the OM3 4 core cable option, contact us for more information.
Rugged round 2 & 4 core Singlemode Fibre patch cable using Belden tactical cable for flexibility and high crush resistance.
FEATURES
MILITARY GRADE FIBRE
Military grade Belden tactical fibre, designed for harsh environments.
BEND INSENSITIVE
Bend insensitive multimode and singlemode fibre for minimal signal loss.
INDOOR/OUTDOOR USE
PUR sheath designed for both indoor and outdoor use.
MADE TO ORDER
All cables are made to any length you require.
TEST RESULTS INCLUDED
All cables shipped with individual test report for insertion loss.
DISPOSABLE REEL
Cables of lengths over 50m will be shipped with a disposable reel. See our ArmourLux range for fully deployable/retrievable options.

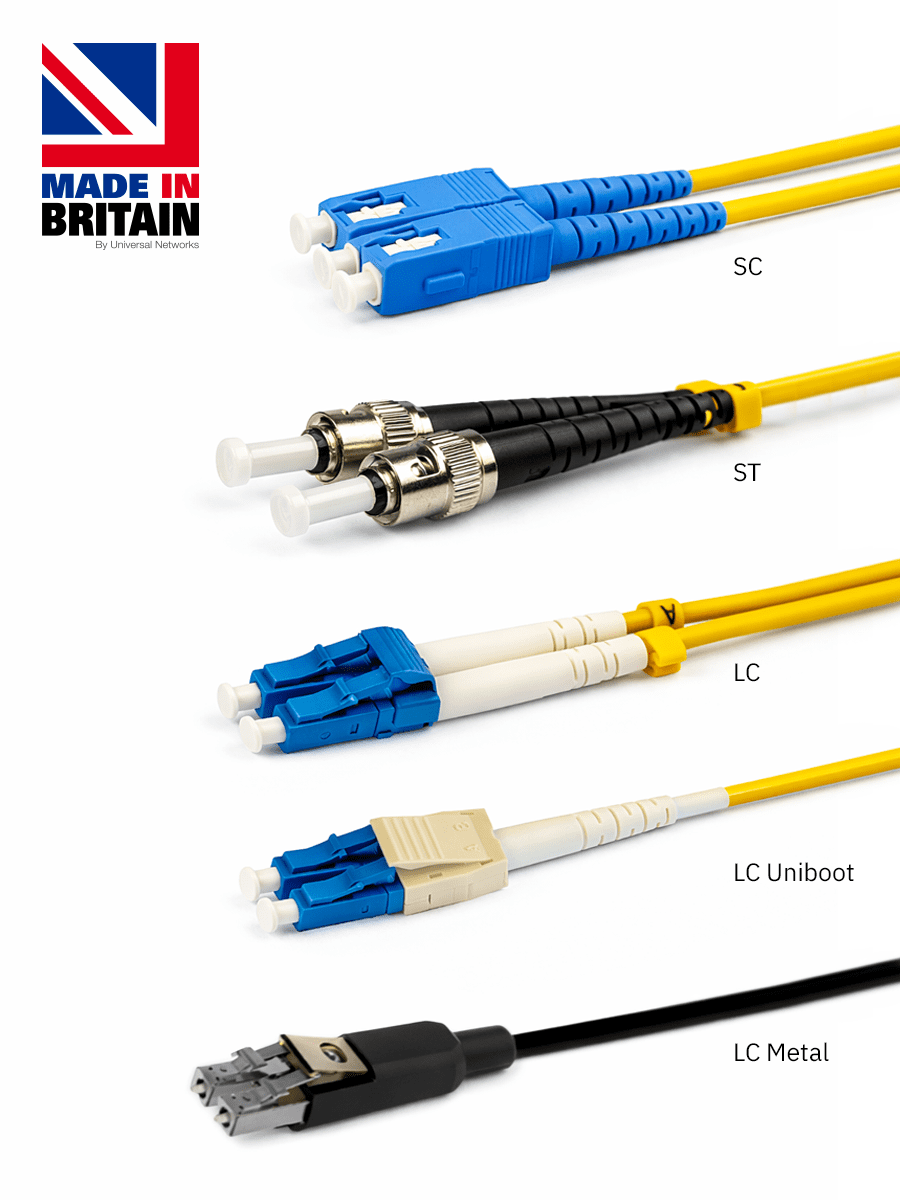

Connector Options
SC/ST/LC Simplex Connectors
Either 2, 4, 8, 12, 16 or 24 SC/ST/LC Simplex connectors on the end of each MILTAC fibre cable, housed within a removable, reusable clear plastic tube or padded sock.
LC Duplex Uniboot Connectors
LC Duplex Uniboot connectors are a single body design, which is stronger than a standard simplex/duplex LC. Either 1, 2, 4, 8 or 12 LC Duplex Uniboot connectors are on the end of each MILTAC fibre cable, housed within a removable, reusable clear plastic tube or padded sock.
Metal LC2+ Connectors
Offered exclusively with the armoured monocoil breakout, our Metal LC2+ connectors feature a rugged metal housing for enhanced durability in harsh environments. Available with 2, 4, 8, 12 or 24 connectors on the end of each MILTAC fibre cable, housed within a removable, reusable clear plastic tube or padded sock.
LC Simplex Connectors
A compact connector commonly found on SFP transceivers and high density panels. Similar to SC but half the size.
SC Connectors
A push-pull connector especially suited to singlemode fibre.
ST Connectors
Metal bayonet style connector popular for broadcast and military applications.
LC Duplex Uniboot
A single-bodied LC connector that combines two fibres in a compact, durable design. More robust than standard simplex or duplex LC connectors.
Furcation Tubing Options
To protect and manage the individual fibres between the breakout point and the fibre connectors, we offer two furcation tubing options to suit different environments and handling requirements:
Standard PVC Furcation
Our default option, featuring lightweight protective tubing to provide basic strain relief and organisation for each fibre. Ideal for general-purpose deployments.

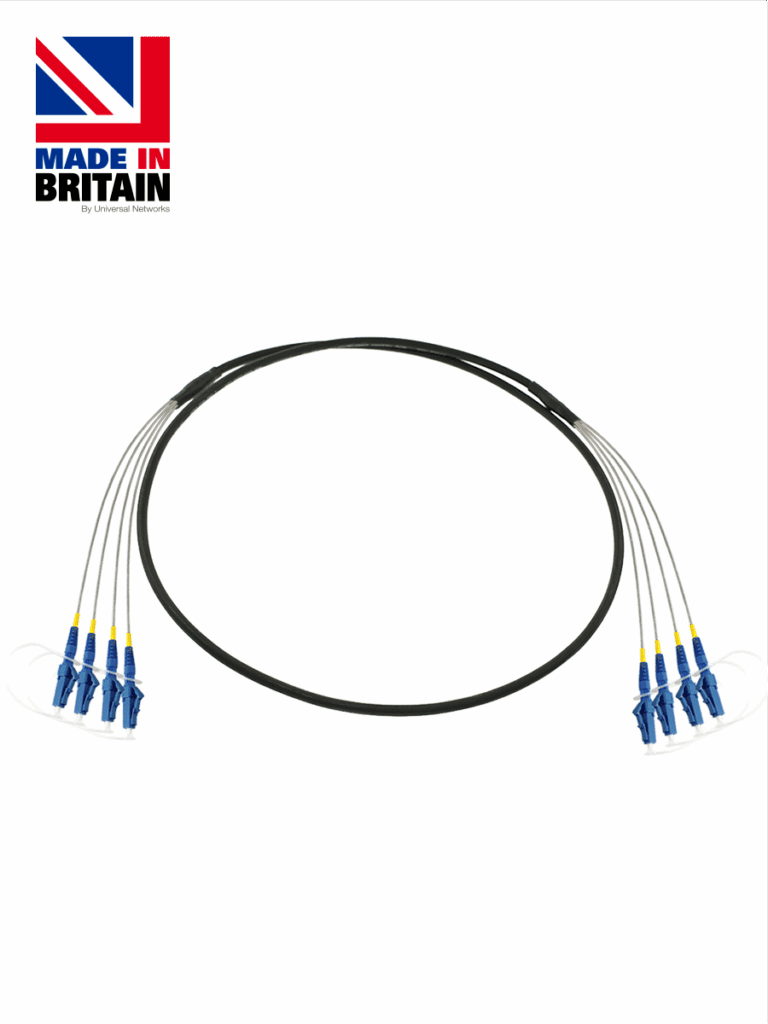

Armoured Stainless Steel Furcation
A light-weight, compact stainless steel tubing upgrade providing enhanced protection against crush and impact whilst retaining flexibility. Recommended for harsher environments or where additional mechanical strength is required during deployment and handling.
