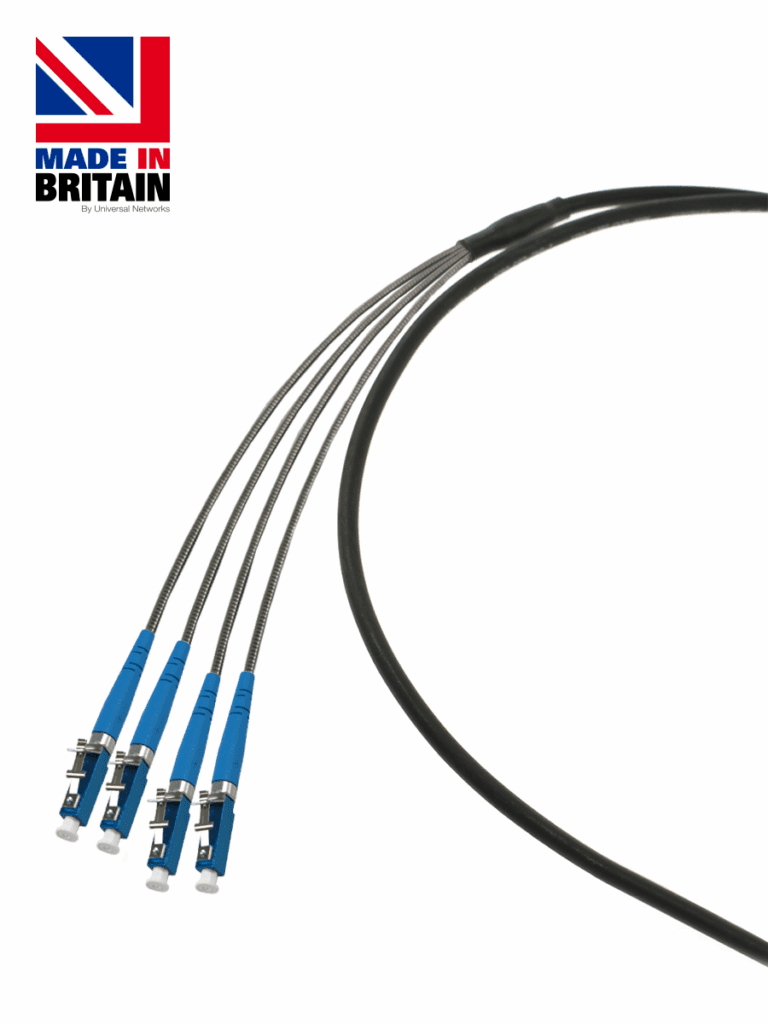

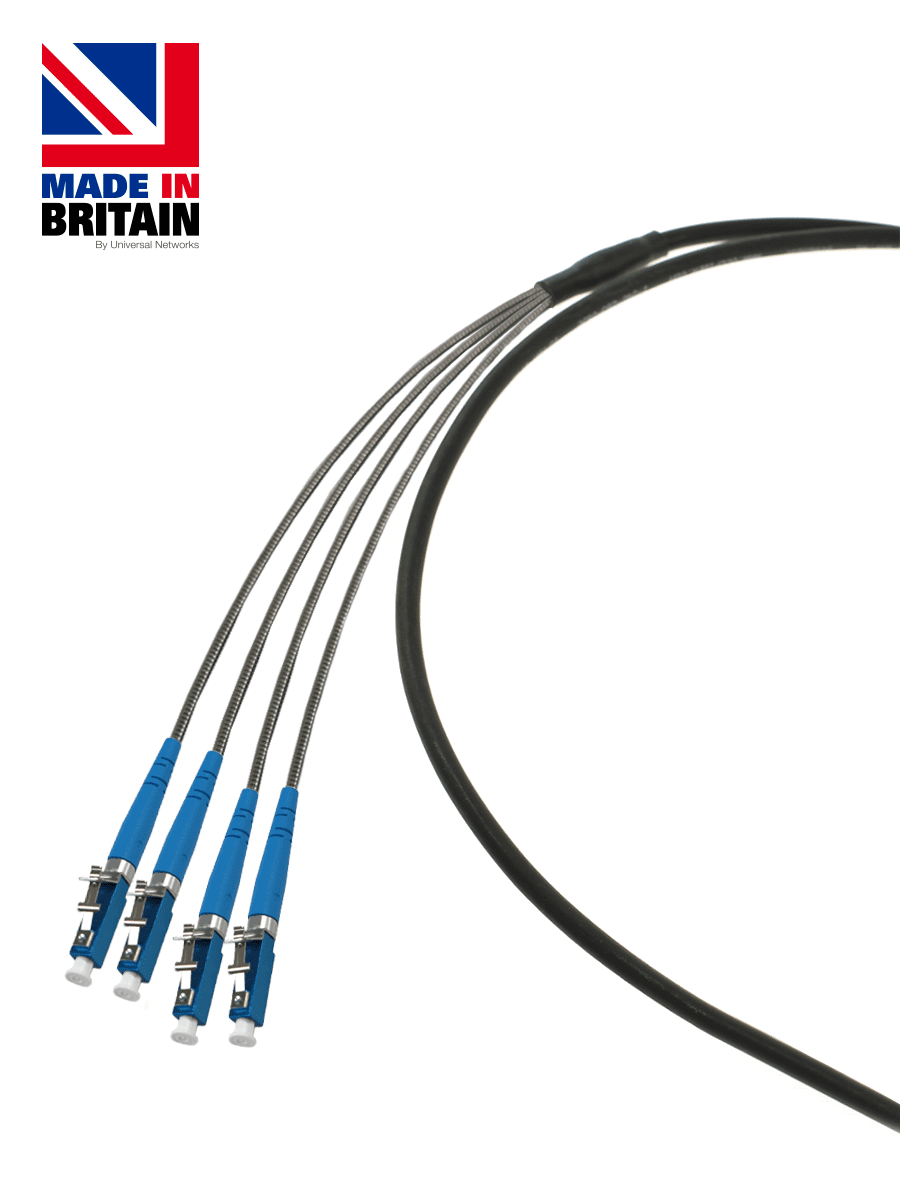

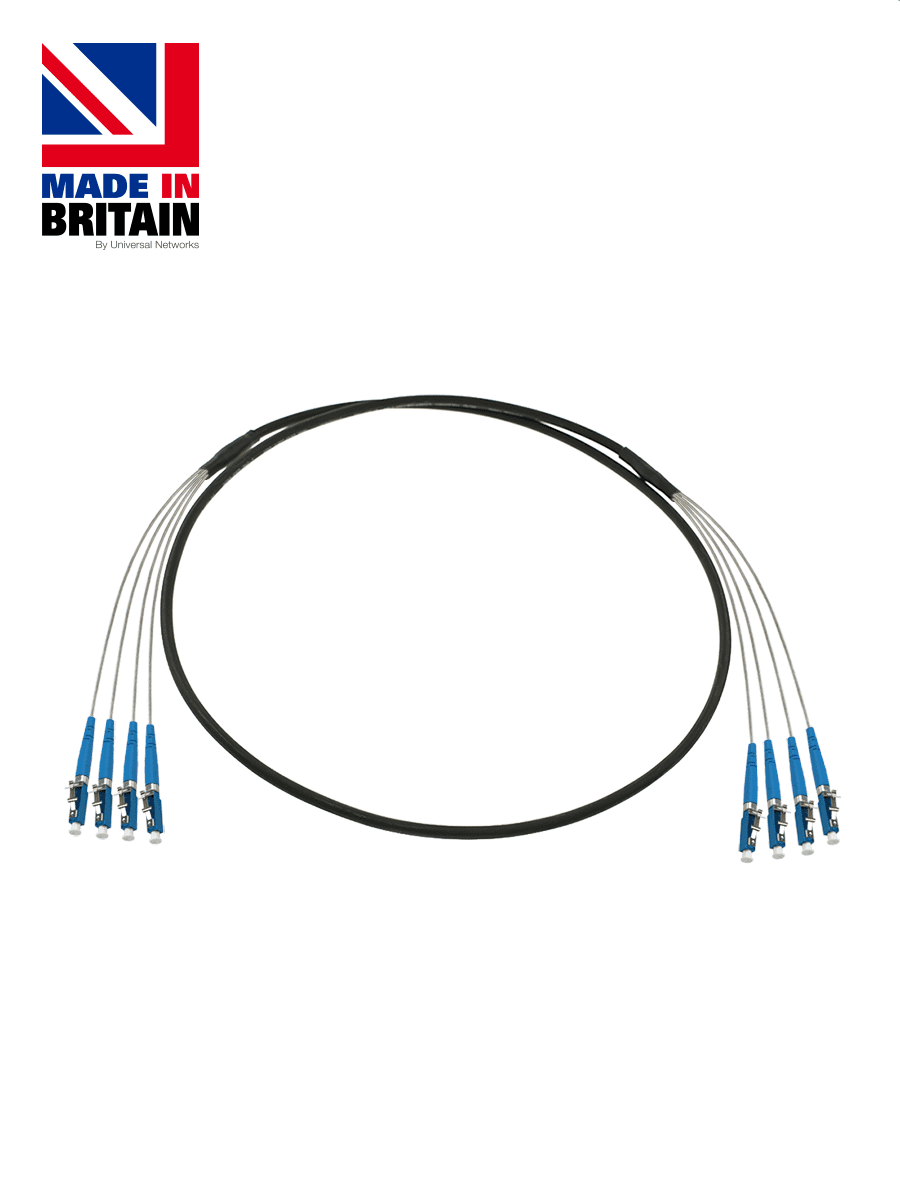

Tactical Fibre Patch Cable with Metal LC2+ Connectors
When standard plastic LC connectors just won’t hold up, our tactical fibre patch cable with metal LC2+ connectors provide a tougher, more reliable alternative. Designed for applications where cables are handled, connector and disconnected frequently – or subjected to tough treatment – the LC2+ features a full-metal body that resists damage, latch failure, and general wear far better than conventional LC designs.
An armoured monocoil breakout adds extra protection between the breakout point and connector, shielding fibres from crush damage and impact during deployment. This makes the assembly particularly well-suited to military, broadcast, and industrial use where equipment is regularly moved and reconfigured.
Paired with a military-grade Belden tactical round cable with a tough PUR sheath and bend-insensitive OS2 or OM3 fibre, this patch cable offers flexibility, high crush resistance, and minimal signal loss over its service life. Each cable is built to order in 2 or 4 core configurations and supplied with an individual insertion loss test report.
- OS2 Singlemode & OM3 multimode
- 2 & 4 core fibre options
- All-metal connector – rugged, compact and fully LC compatible
- Made in the UK

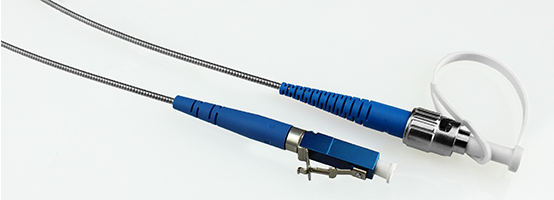

Armoured Stainless Steel Furcation
A light-weight, compact stainless steel tubing upgrade providing enhanced protection against crush and impact whilst retaining flexibility. Recommended for harsher environments or where additional mechanical strength is required during deployment and handling.

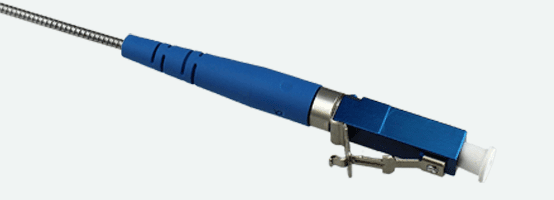

Metal LC2+ Connectors
Offered exclusively with the armoured monocoil breakout, our Metal LC2+ connectors feature a rugged metal housing for enhanced durability in harsh environments.
FEATURES
MILITARY GRADE FIBRE
Military grade Belden tactical fibre, designed for harsh environments.
BEND INSENSITIVE
Bend insensitive multimode and singlemode fibre for minimal signal loss.
INDOOR/OUTDOOR USE
PUR sheath designed for both indoor and outdoor use.
MADE TO ORDER
All cables are made to any length you require.
TEST RESULTS INCLUDED
All cables shipped with individual test report for insertion loss.
DISPOSABLE REEL
Cables of lengths over 50m will be shipped with a disposable reel. See our ArmourLux range for fully deployable/retrievable options.
Alternative Connector Options
LC Simplex/Duplex Connectors
Compact LC connectors, similar to SC but half the size. Available as simplex or a duplex uniboot design which combines two fibres in a single, more robust body for improved durability.
SC Connectors
A push-pull connector especially suited to singlemode fibre.
ST Connectors
Metal bayonet style connector popular for broadcast and military applications.
Duplex Uniboot Metal LC
A unique all-metal LC connector offering exceptional durability and strength, fully compatible with standard LC sockets.
