ArmourLux500 with Standard Connectors

Product Code: AL5XX-XRXX-X-X
Categories: ,

Tactical Belden cable terminated with standard connectors (LC, SC, ST) and IP rated LC options, 2, 4, 8, 12, 16 and 24 core fibre. Designed to meet the demands of mobile fibre optic communication, for media, audio, security, data and much more. A re-useable fibre cable that is easy to deploy, retrieve, connect, transport and store.

£110.00£623.00 (Excl. VAT)

£132.00 (Incl. VAT)

Configure Your Product
OM3 (Multimode)
OS2 (Singlemode)
2
4
8
12
24
LC Uniboot-LC Uniboot
LC-LC
ST-ST
SC-SC
Reset

£110.00£623.00 (Excl. VAT)

£132.00 (Incl. VAT)

Add to Quote
Add to Quote
Ask a Question

ArmourLux500 with Standard Connectors

The ArmourLux500 Standard series uses a cable based on MIL-C-85045 Military Standard, which is extremely strong, lightweight and rugged. It’s ideal for harsh environments, striking a balance between durability and portability. It has a high crush resistance yet remains flexible so it’s easy to deploy and retrieve.

  • 2-24 fibre
  • LC, SC, ST connectors
  • Singlemode or multimode
  • Staggered or straight
  • Tube or sock cable protection
  • Transit cases also available

FEATURES

The ArmourLux Standard range provides a number of benefits that make this option suitable for harsh environments.

Military defence tank
MILITARY GRADE FIBRE

Military grade Belden tactical fibre, designed for harsh environments.

Icon - UK Manufactured
UK MANUFACTURED

Products manufactured in the UK and individually serialised for traceability.

Indoor/Outdoor Use
INDOOR/OUTDOOR USE

PUR sheath designed for both indoor and outdoor use.

Icon - Bend Insensitive
BEND INSENSITIVE

Bend insensitive multimode and singlemode fibre for minimal signal loss.

Portable Deployable Reel
PORTABLE REEL

Includes portable, deployable reel with 3rd flange and friction brake.

Wide Operating Temperature
WIDE OPERATING TEMP

Cable operating temperature ranges from -55°C to +85°C.

Connector Options

SC/ST/LC Simplex Connectors

Either 2, 4, 8, 12, 16 or 24 SC/ST/LC Simplex connectors on the end of each MILTAC fibre cable, housed within a removable, reusable clear plastic tube or padded sock.

LC Duplex Uniboot Connectors

LC Duplex Uniboot connectors are a single body design, which is stronger than a standard simplex/duplex LC. Either 1, 2, 4, 6, 8 or 12 LC Duplex Uniboot connectors are on the end of each MILTAC fibre cable, housed within a removable, reusable clear plastic tube or padded sock.

LC Connector
LC Simplex Connectors

A compact connector commonly found on SFP transceivers and high density panels. Similar to SC but half the size. These are paired-off when staggered in tubes.

SC Connector
SC Connectors

A push-pull connector especially suited to singlemode fibre. These are staggered as simplex when used in tubes.

ST Connector
ST Connectors

Metal bayonet style connector popular for broadcast and military applications. These are staggered as simplex when used in tubes.

LC Uniboot
LC Duplex Uniboot

A single body design, which is more robust than a standard simplex/duplex LC. These are staggered as duplex when used in tubes.

Breakout Options

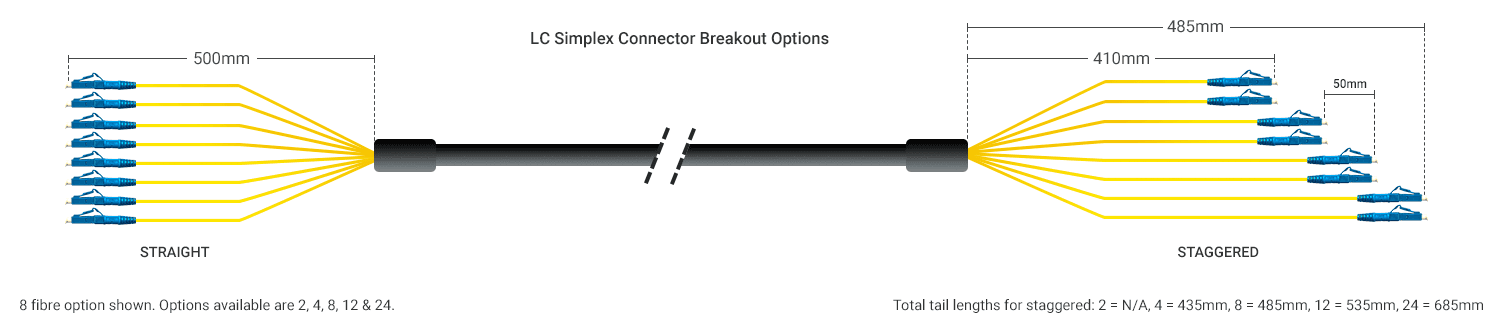

LC Simplex Breakout Options
SC Breakout Options
ST Breakout Options

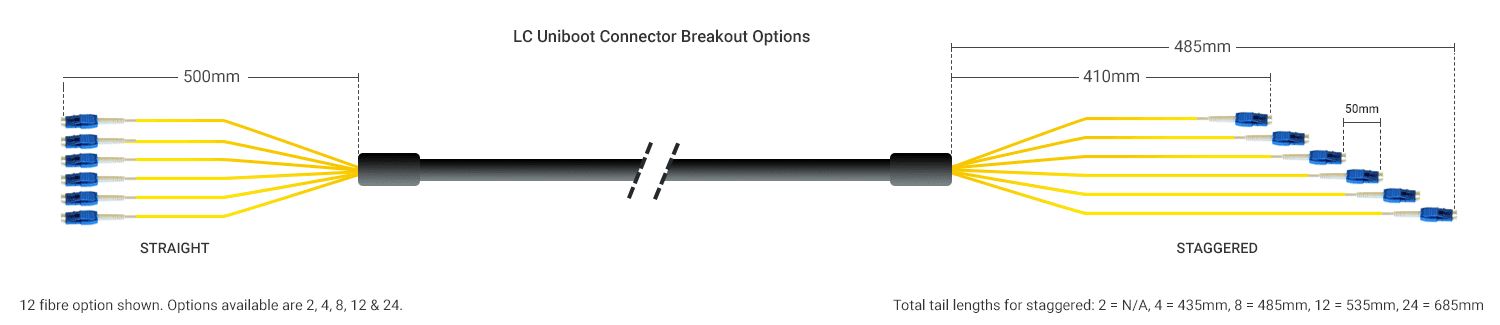

LC Uniboot Breakout Options
Greater reliability in harsh environments

The ArmourLux500 range uses a tough, durable Miltac cable that tightly packs bend insensitive fibres in aramid yarn, ensuring minimal signal loss even if accidentally kinked.

Cable tied in a knot

Connector Protection

Clear Protective Tube

The default protection option for all STAGGERED tail options is a clear protective tube.

Here the connectors are housed within a removable and reusable clear plastic tube to offer maximum protection when not in use. The tube is held in place by a threaded nut and offers good pulling retention.  If you have more than 4 connectors, you may wish to consider the SOCK option for ease of use – please see information box to the right for further information.

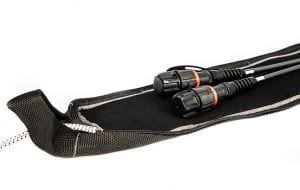

Padded protective sock
Padded Protective Sock

The zipped padded sock option has a wider internal diameter so can accommodate STRAIGHT (equal length) connector tails. When you select ‘Breakout – STRAIGHT’, the sock is automatically added.  Note, this is a more expensive option than the tubes.

The sock is quick and easy to use. Once unzipped it can be slid back to reveal the connectors but stays attached to the cable, therefore it does not get mislaid.  It also works well when you have multiple STAGGERED connectors, which can be fiddly to get back into the tube after use.  If you select ‘Breakout – STAGGERED’, then you can add the Padded Protective Sock to your basket as an additional item and we will build your cable assembly with this, instead of a clear protective tube.

Connectivity Diagram

Q & A

Alongside the wide range of products we offer on our website, we also offer a bespoke design service. This allows our customers to get the exact product they need for their specific project. So whether you need 2 core or 24 core, singlemode or multimode, sockets, couplers or connectors, we can work with you to design and build the product you need. To find out more, please contact us.

Example customised products:

  • AL5NS4-4R38-135-B – 4 core, tactical deployable fibre OM4 multimode cable with 2 x Neutrik DUO couplers at one end and 2 x Neutrik DUO sockets at the other.
  • AL5NS4-2R38-135-B – 2 core, tactical deployable fibre OM4 multimode cable with with 1 x Neutrik DUO couplers at one end and 1 x Neutrik DUO sockets at the other.
  • AL5NS4S-4R38-135-B – 135m ArmourLux500 4 Core Tactical Deployable Fibre Cable, 50/125 OM4 Multi Mode, 2 x Neutrik DUO Coupler – 2 x Neutrik DUO Socket, Black PU Sheath, with Sock, includes Deployable GT380 Cable Reel
  • AL5NS4S-2R38-135-B – 135m ArmourLux500 2 Core Tactical Deployable Fibre Cable, 50/125 OM4 Multi Mode, 1 x Neutrik DUO Coupler – 1 x Neutrik DUO Socket, Black PU Sheath, with Sock, includes Deployable GT380 Cable Reel

Yes, depending on the length, we can either coil your assembly or put it on a wooden drum, so that you can decant.

Yes, if you contact us we can provide a quotation.  You can choose which connector type is required on the deploy end.

We can supply ArmourLux terminated on X-TREME and other cable options not listed. Please contact us for more information.

Mainland UK
Next working day delivery is offered as standard Monday-Friday for goods that are pre-made, are in stock and are not custom made. This service is only available for shipments to the UK Mainland, excluding the Scottish Highlands. If a quick delivery is important to you, you wish to check a manufacturing time for a custom made item or are placing an order after 3pm, please call the office on 01488 685800; we can confirm the stock availability and dispatch date very promptly.

International (Non-Mainland UK)
If your delivery location falls outside of the Mainland UK (i.e. International or Non-Mainland UK), after placing an order on the website, Universal Networks will contact you via e-mail or telephone to confirm the total cost of the order including delivery to your desired destination. We will then require your Credit or Debit Card details to process an offline payment.

Small Order Handling Charge
For orders under £100, a handling fee of £10 will be added to the basket in addition to the delivery charge.

To read more information, please visit our Delivery FAQ or Delivery Information pages.

Resources



Specification

wdt_ID SPECIFICATION 2 FIBRE 4 FIBRE 8 FIBRE 12 FIBRE 24 FIBRE
1 Cable Diameter 5.4mm 5.8mm 6.4mm 7.3mm 8.5mm
2 Weight/Km 26kg 30kg 37kg 45kg 55kg
3 Tensile Strength Short Term 300N 400N 400N 450N 450N
4 Operating Temperature -55°C to +85°C -55°C to +85°C -55°C to +85°C -55°C to +85°C -55°C to +85°C
5 Crush Long/Short Term 3000N/m / 5000N/m (IEC 60994-2-20) 3000N/m / 5000N/m (IEC 60994-2-20) 3000N/m / 5000N/m (IEC 60994-2-20) 3000N/m / 5000N/m (IEC 60994-2-20) 3000N/m / 5000N/m (IEC 60994-2-20)
wdt_ID REEL CAPACITY 2 FIBRE 4 FIBRE 8 FIBRE 12 FIBRE 24 FIBRE
1 R1 76m 67m 49m 36m 33m
2 R2 141m 123m 90m 66m 61m
3 R3 277m 241m 177m 129m 120m
4 R9 447m 390m 286m 209m 194m
5 R10 710m 618m 454m 331m 308m
6 R6 906m 847m 622m 453m 422m
7 R7 1359m 1270m 933m 680m 633m
